Polygon Screen Printing Machine for Each Face Printing

  • Model：EC-300PG
  • Views：1028
  • Polygon Screen Printing Machine
  • Triangle Screen Printing Machine
  • Square Screen Printing Machine
    • Polygon Screen Printing Machine  , Triangle Screen Printing Machine  , Square Screen Printing Machine
    Inquiry Send Email

    Description

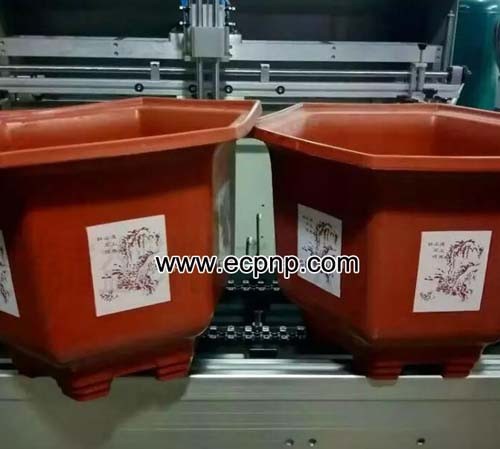

    EC-300PG Polygon Screen Printing Machine for Each Face Printing ,it's PLC and servo control ,touch screen setting .

    Good for polygon surface products printing, such as  quadrate,hexagon,octagon bottles, mugs,  jars and so on.

    Multiface printing continuously , one time finish .

    Model:
    EC-300PG
    Printing length:
    300MM
    Max printing size:
    200*300MM;
    Max screen frame size:
    300*600MM
    Max printing speed:
    1000P/H
    Voltage:
    200V/110V 50W (optional)
    Weight:
    200KG
    Dimension:
    1000*1000*1700MM
    Air pressure:
    5-7Bar
    Drive method:
    compressed air and electricity
    Air compressor:
    Need; About 2-3KW 50-80L(1-2 machine)
