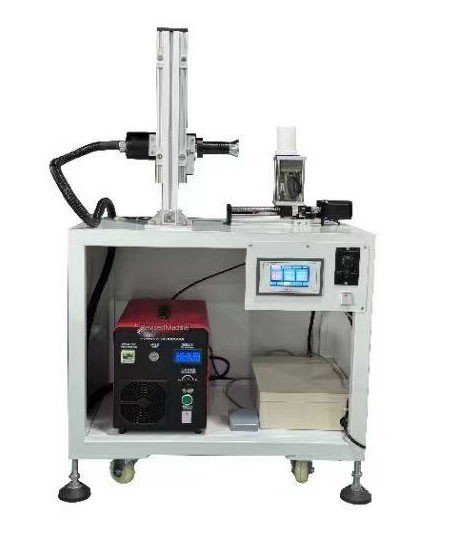

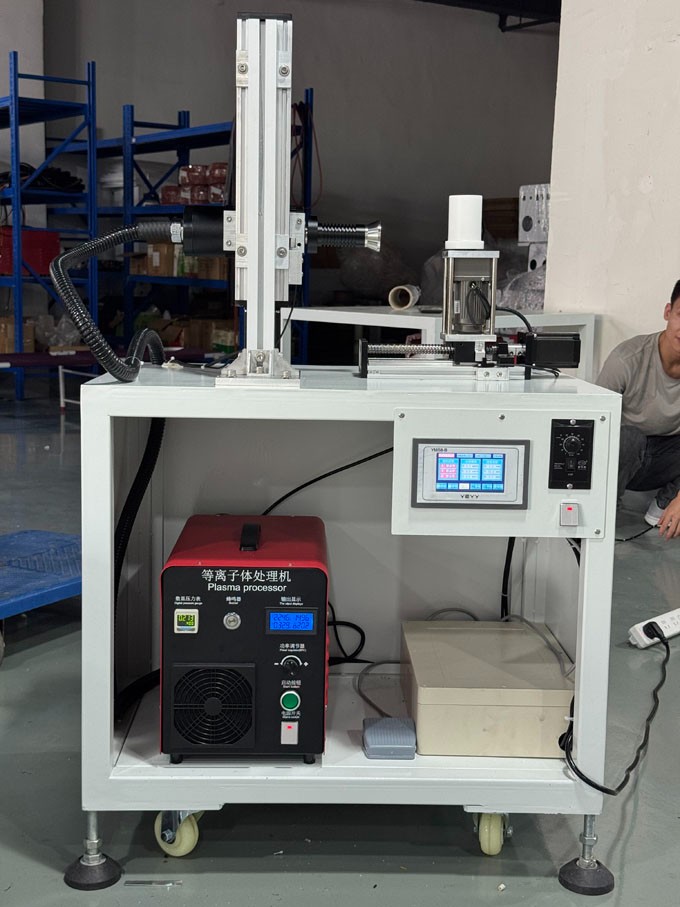

Round Products Corona Treatment Machine

Model：EC-CT400R

Corona Treatment,

Corona Treat

Screen Printing Treatment

Pad Printing Treatment

Description

Function

Alarm: Overload Protection, Temperature Protection, Air Pressure Protection, Short Circuit Protection
Products Processed: Circular Products
Use industry: Hardware Processing / Electronic Communication / Packaging Printing / Rubber & Plastic / Industrial Machinery / 3C Digital

Parameter
Plasma Main Unit Dimensions: 390x240x300MM
Overall Dimensions: 700x500x1400MM
Circular Product Self-rotation Speed: Adjustable 0-500MM/minute
Round Product Height: 1mm --1000mm
Round Product Height: 1mm --1000mm
Power Adjustable: 700-1200W
Nozzle Processing Diameter: 20-100MM (Optional)
Adjustable Pressure: 0.15-0.4MPA
Effective Z-axis Travel: 0-300MM/S (Adjustable)
Effective Travel of Y-axis: 0-100MM (Adjustable)
Z-axis Motion Speed: 0-300MM/S (Adjustable)
Y-axis Motion Speed: 0-300MM/S (Adjustable)
Total Machine Power: 1500W
Input Power Supply: 220V/AC
