Description
Application
Semi-auto Label applicator can be equipped on assembly line for labeling flat face or side wall , cambered surface products.
It can be connected with conveyor belt
Specification
1.Label width: 20-150mm(include back paper)
2.Label length:10-300mm
3.Products Diameter: Any size
4.Max Outside diameter of label roll: φ280mm
5.Inside diameter of label roll: φ76mm
6.Max Labeling speed:200pcs /min
7.Accuracy of labeling:±1mm
8.Power: 220V/110V 50/60Hz 400W

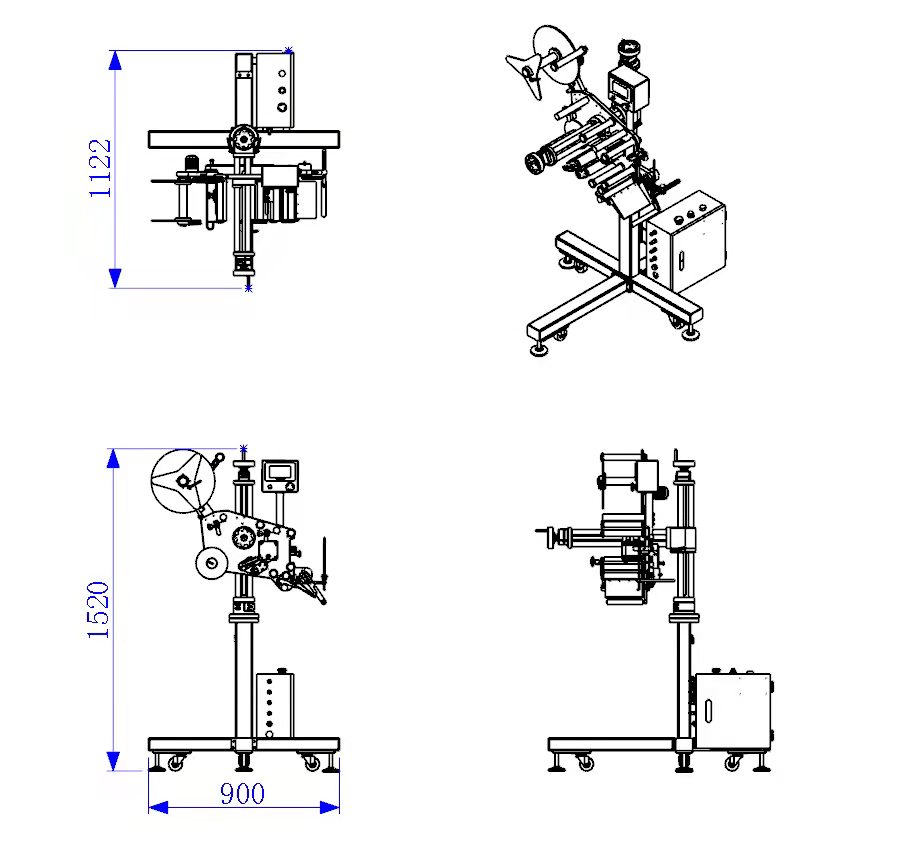

9.Machine Dimension: 900mm x 820mm x 1600 mm
Semi-auto Label applicator can be equipped on assembly line for labeling flat face or side wall , cambered surface products.
It can be connected with conveyor belt
Specification
1.Label width: 20-150mm(include back paper)
2.Label length:10-300mm
3.Products Diameter: Any size
4.Max Outside diameter of label roll: φ280mm
5.Inside diameter of label roll: φ76mm
6.Max Labeling speed:200pcs /min
7.Accuracy of labeling:±1mm
8.Power: 220V/110V 50/60Hz 400W
9.Machine Dimension: 900mm x 820mm x 1600 mm
10. Machine Net Weihgt : 100 KG Gross weiht : 130KG
