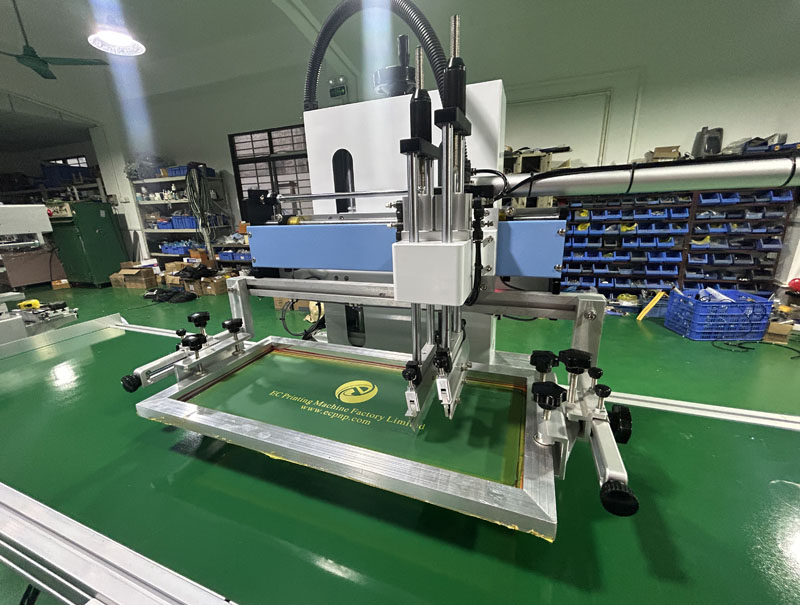

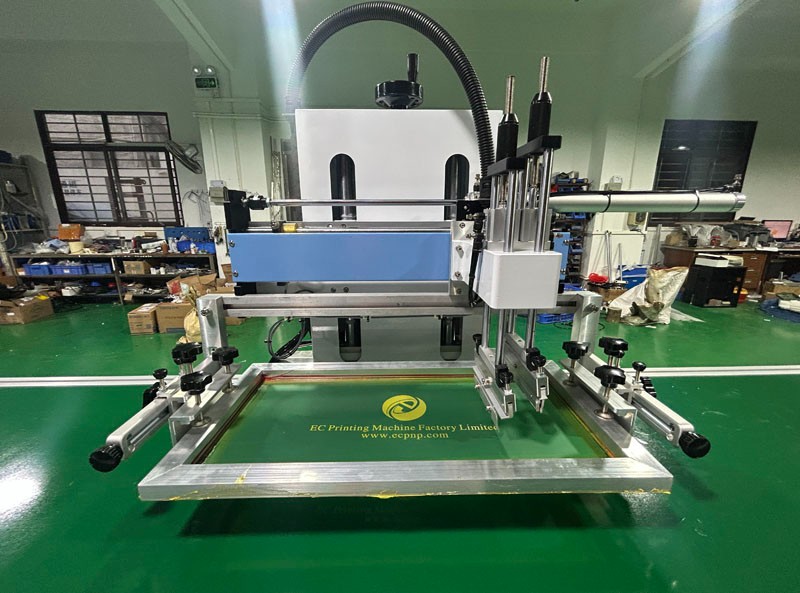

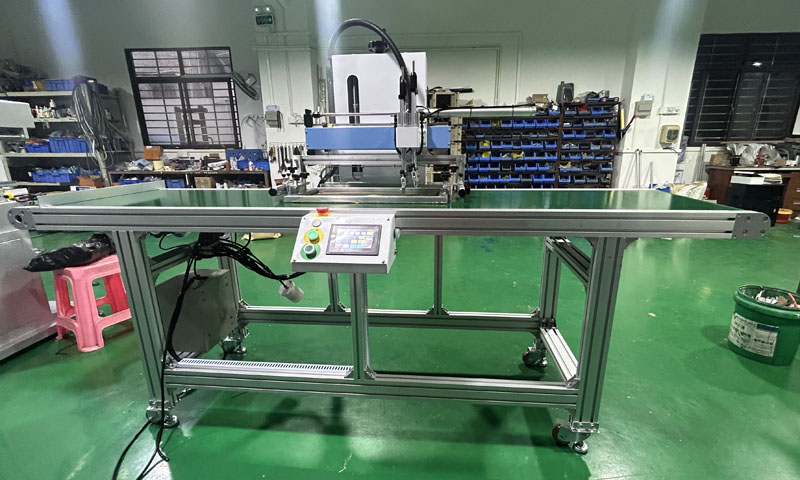

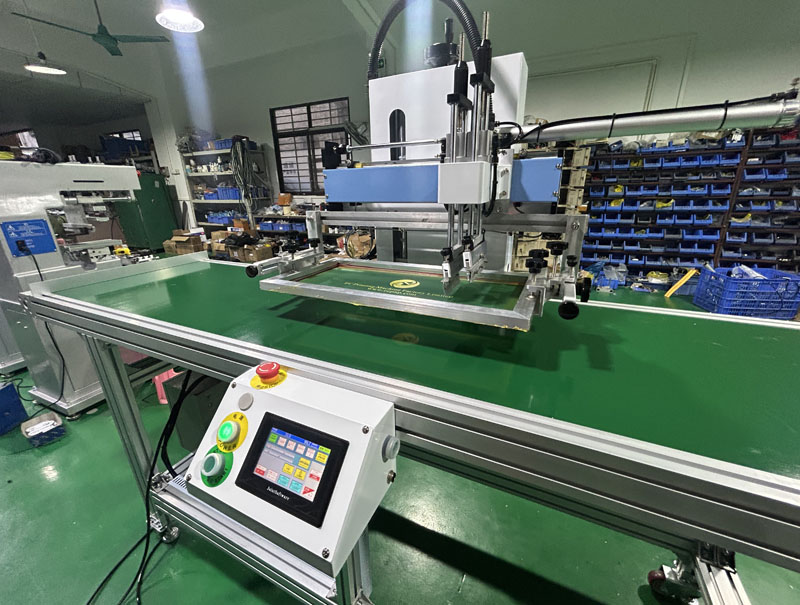

Mini Flat Screen Printer with Conveyor Belt Table

Description

Mainly suitable for kinds of flat screen printing, such as various plastic bags, non-woven bags,paper bags, cartons ,  hard sheets, etc.though adding jigs,
you can also print plastic and metal products with regular size;

Feture
1.The machine adopts conveyor belt continuous automatic transmission printing to facilitate feeding and improve production;
2.Scraper constant pressure device, printing pressure size adjustable, printing area size adjustable, and printing speed adjustable;

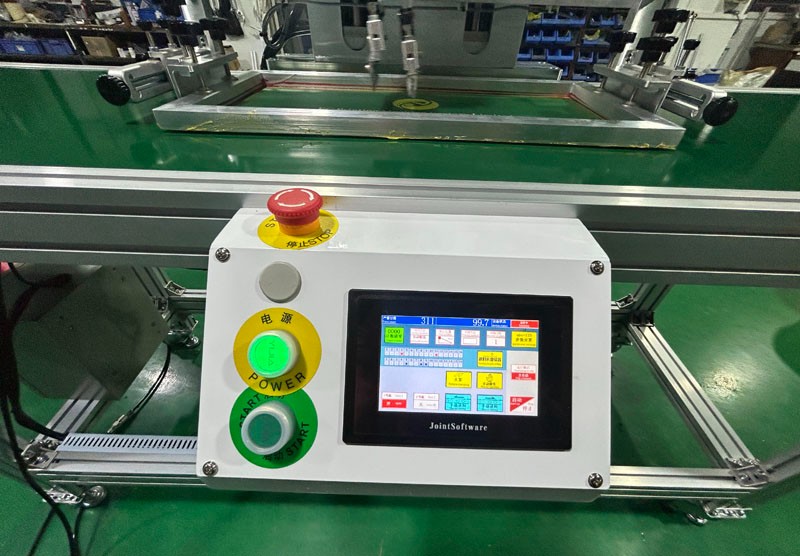

3.PLC programmable touch screen control, simple operation, easy to use;
4.Pneumatic lifting device, convenient replacement and cleaning of the net plate;
5.Pneumatic flat lifting mechanism, with adjustable printing height and strong adaptability;
6.Aluminum profile frame, with pulley movement, convenient durability and stability;

Parameter
1.Model: EC-2535BE
2.Max Printing area: 250x350mm
3.Max Screen Frame size:400x600mm
4.Conveyor belt size: 2500x500mm
5.Overprint accuracy: ±0.08-0.1mm
6.Max printing height: 100mm
7.Max printing speed: 1200-1500pcs /hour
8.Machine dimension: 252x 83 x149cm
9.Power: 220V ,single phase ,40W
10.Air pressure: 4-6 bar
