  • Flat and Cylindrical Universal Screen Printer
  • Flat and Cylindrical Universal Screen Printer
  • Flat and Cylindrical Universal Screen Printer
  • Flat and Cylindrical Universal Screen Printer
Flat and Cylindrical Universal Screen Printer Flat and Cylindrical Universal Screen Printer Flat and Cylindrical Universal Screen Printer Flat and Cylindrical Universal Screen Printer

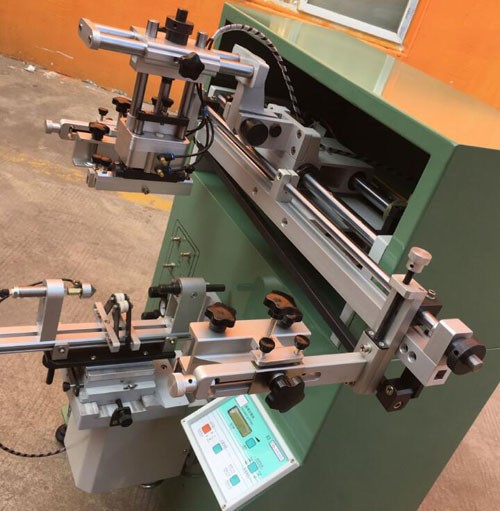

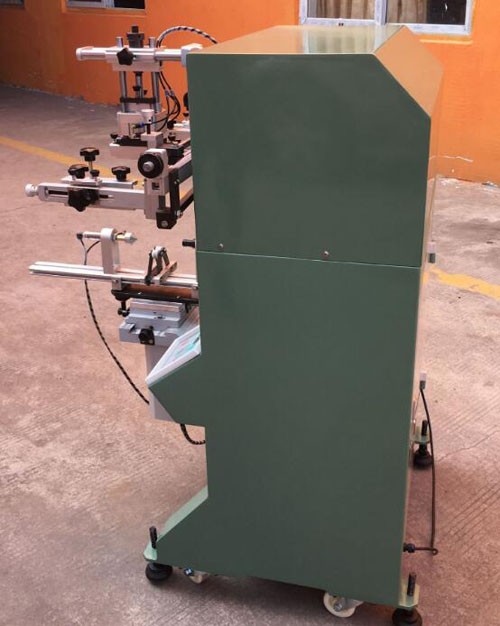

Flat and Cylindrical Universal Screen Printer

  • Model:EC-400E
  • Views:2915
  • Flat and Cylindrical Universal Screen Printer
    Inquiry Send Email

    Description

    Suitable for printing on the surface of cylindrical, conical and oval object; such as lipstick, cosmetic bottles, scour bottles,    drink bottles, pots, oil-filter shell etc, the materials that is made of metal, plastic, ceramic, glass, wood, and so on. With
    the perfect design and innovation technology, ensure the fast printing speed and good printing quality。bottl screen print
    Feature:
    1. Advanced fully automatic computerized system control,easy handing .
    2. Built-in four figures automatic LED digital counter
    3. Suitable for printing on round, cylindrical, oval or flat project
    4. Light-weight, strong aluminum cast machine frame, Adujustability of routs and speeds
    5. Automatic oil scrabbing, oil return and lifting table
    6. Squeegee/flood bar depth, pressure, speed, leveling, and stroke etc., are all adjustable to fit your various printing needs.
    7. Horizontal movement of screen frame can be adjusted to fit your various printing needs.
    8. Net frame work table can be adjusted around emblem, tone down logo, printing, high precision, easy to adjust ,quick.
    9. Adopt USA Parker or Japan SMC components.

    Specifications
    1. Thickness of printing matter: 0~350 mm
    2. Product appearance: Round /oblate /flat
    3. (Round)Max. Printing diameter: Φ120mm
    4. (Round)Max printing arc length: L: 370mm
    5.(oblate)Max printing diameter: 500mm
    6.(flat) Max printing area: 320 x 220mm
    7. Max gradient for Work piece:<14°
    8. Air pressure:6 Bar
    9. Air consumption:500 Liter / Min
    10. Power voltage: 220V/110V  60/50Hz
    11. Power consumption:50 W
    12. Machine dimension:1080×850×1280mm
    13. Machine weigh: 145Kg
