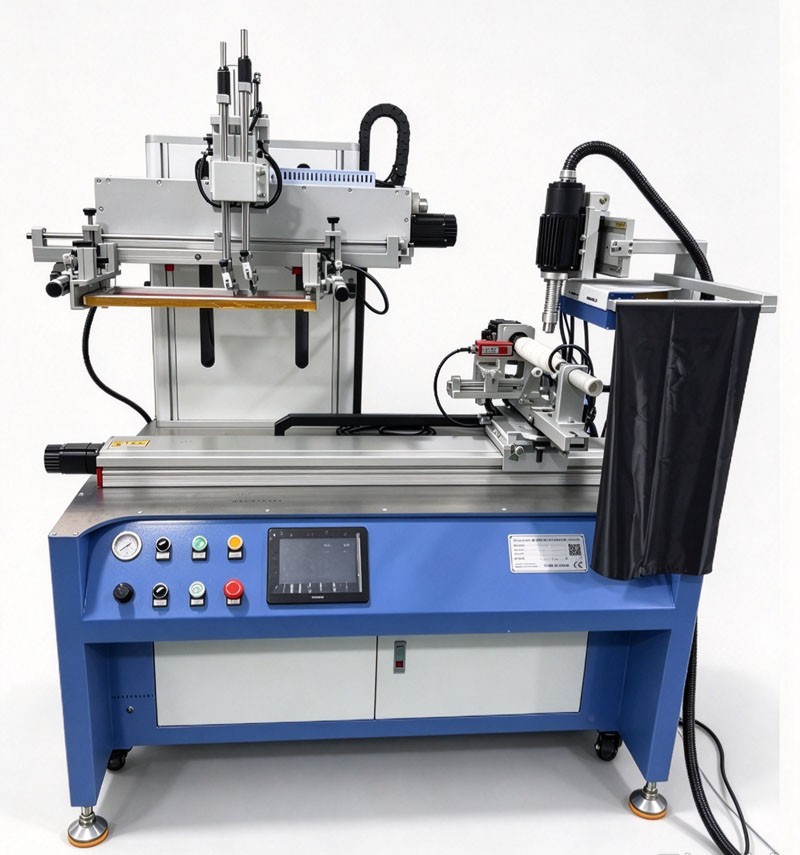

Automatic Registration Screen Printer with Corona Treatment and LED UV Drying

Description

Parameter
1.Max printing area : 300x360mm
2.Max printing diameter : 120mm
3.Air pressure : 2-3 bar Power: 220V  50/ 60Hz  2.3KW ,Single phase
4. LED UV lamp chips are Seoul Chip , 395nm wave length
5.Registration Sensor: Leuze   PLC :  Hitachi
6. Four set ABB servos
Screen Frame left and right is ABB servo
Screen Frame up and down is ABB servo
Fixture Rotatery is ABB servo
Fixture Shuttle to  LEDUV drying is ABB servo
7.  Four cylinders lock  two side screen frames
