Description
Product Introduction

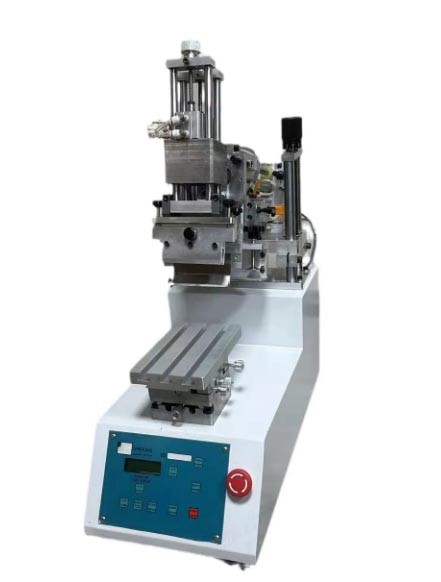

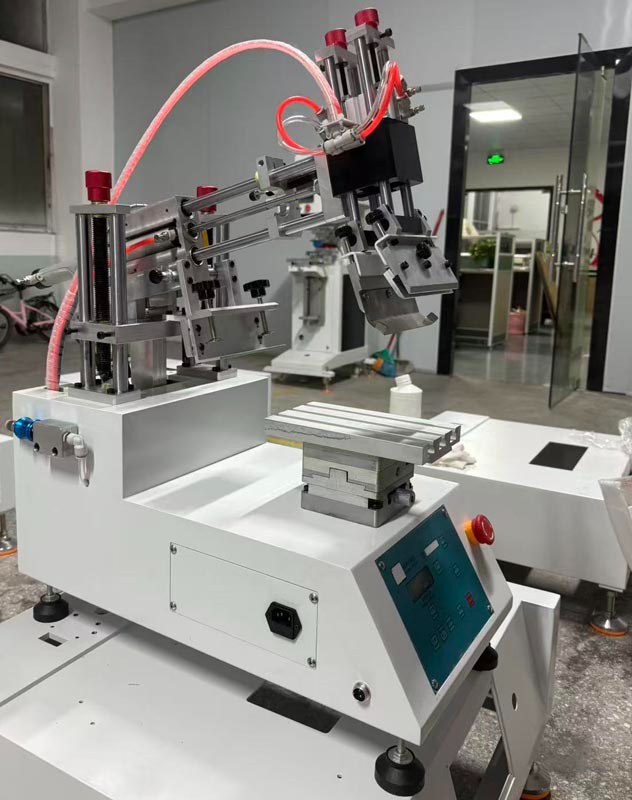

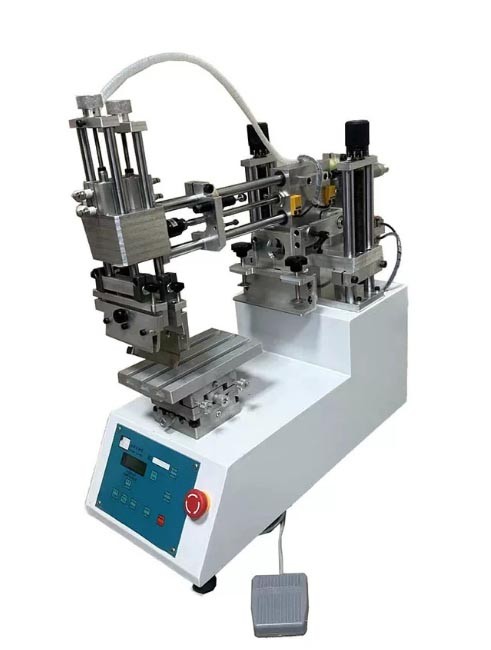

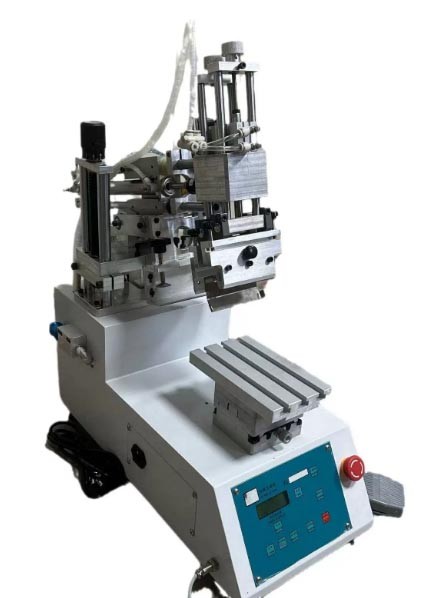

The EC-1520TE small swing-arm screen printer is mainly used for multi-directional screen printing on:
1.Mobile touch screens & housings
2.Logo printing
3.Light guide films, thin films, keyboards, mobile panels, control panels, lenses
4.Acrylics, circuit boards, nameplates, electrical components, and small film/sheet/board products
Product Features
1.Keypad control for all functional actions, simple and easy to operate.
2.All pneumatic components adopt well-known brands, ensuring excellent machine quality.
3.The worktable supports front/back, left/right, and angular adjustments; the screen frame also allows front/back fine-tuning for quick and easy calibration.
Parameter
Worktable Area: 120 × 200 mm
Max Printing Size: 150 × 180 mm
Max Screen Frame Size: 300 × 400 mm
Max Workpiece Height: 150 mm
Power Supply: 220 V single phase 50W
Machine Dimensions: 350 × 650 × 800 mm
Machine Weight: 30 kg
