Description
Please notice:
This machine printing accuracy is ± 1-1.5mm , it can't do over print .
Feture
1. All positions are controlled by Taiwanese Yangming photoelectric sensors, ensuring accurate positioning and superior performance.

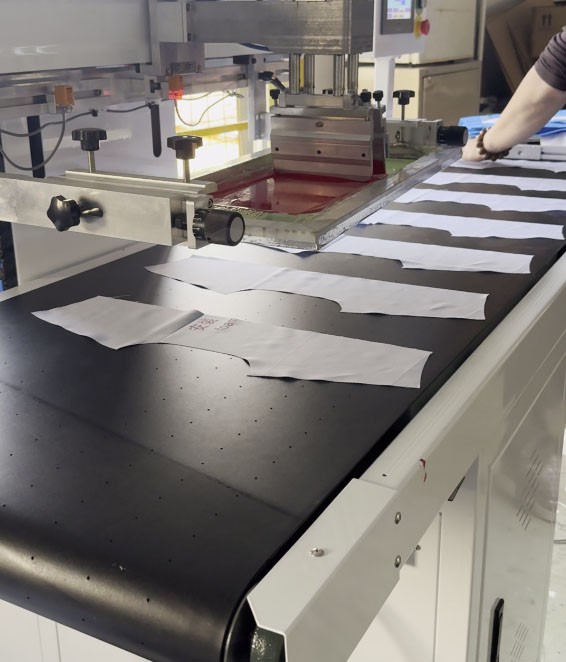

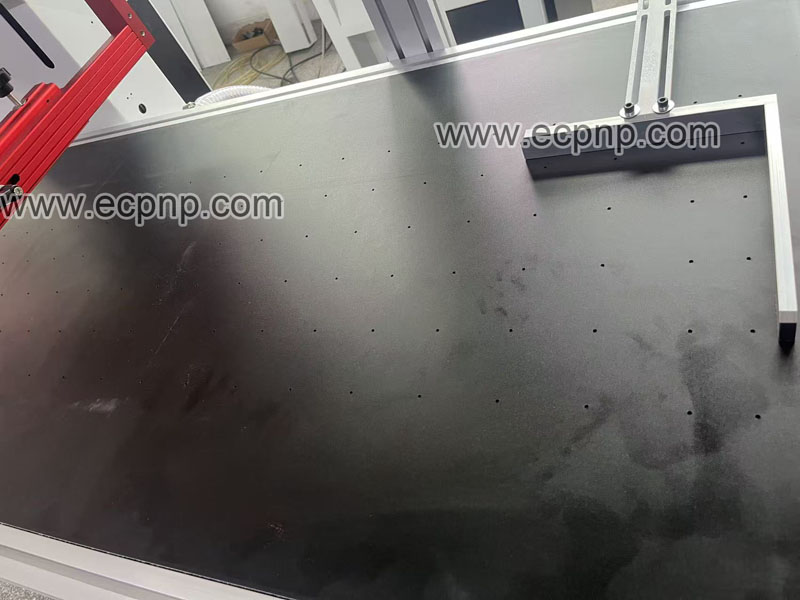

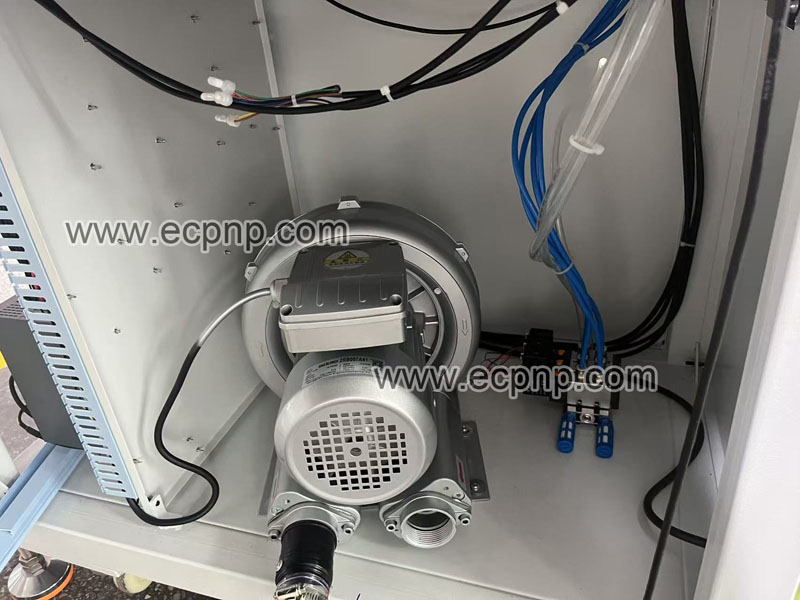

2. The production line table has a suction device. The production line drive uses servo motors for more precise distance transmission.
3. The squeegee's up-and-down movement features a seamless guide column structure, ensuring smooth and effortless movement and improved printing quality.

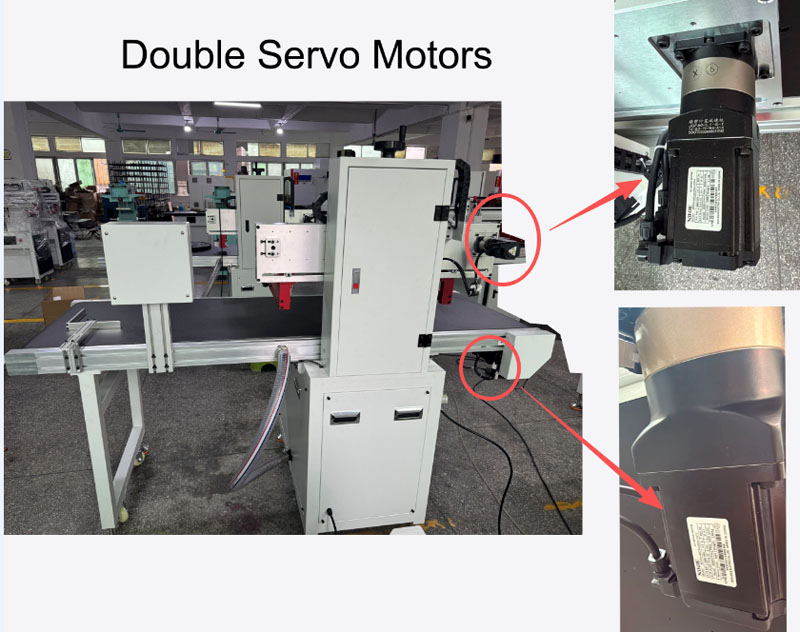

4. The squeegee's left-and-right movement uses a 400W servo motor with a 1:15 reducer and dual guide rails, suitable for high-precision printing.

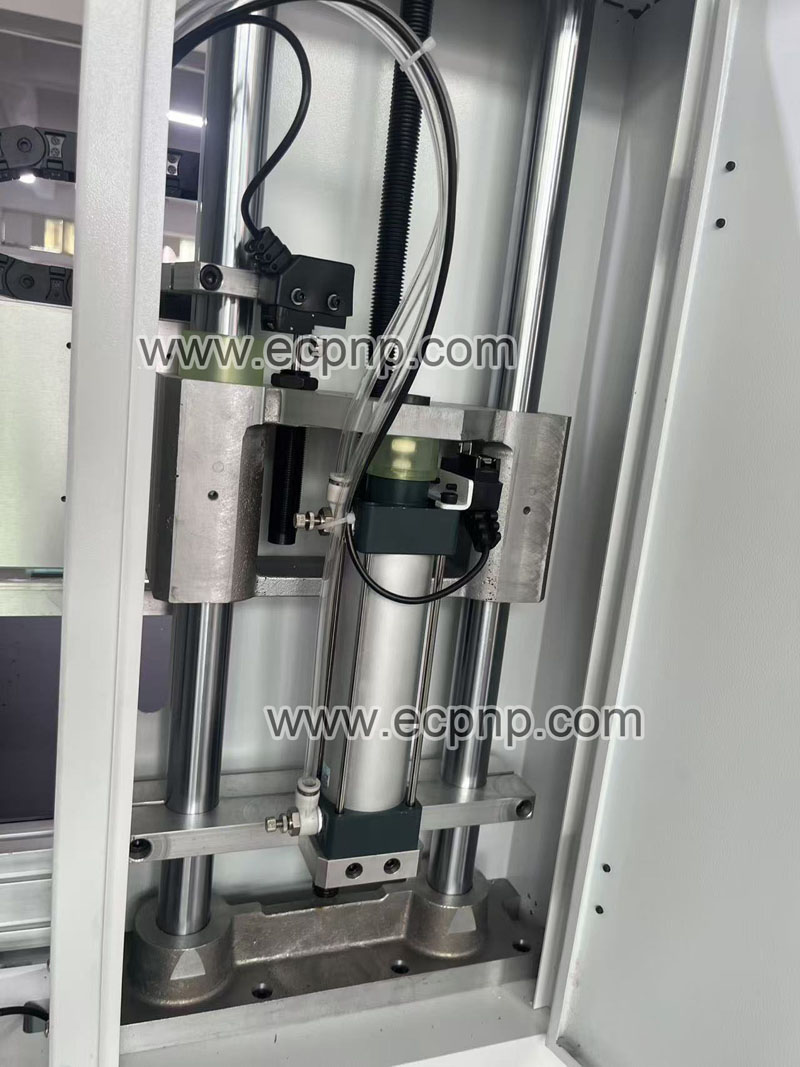

5. The screen frame lifting mechanism uses guide columns for high precision and smooth, stable movement.
6. The production line's dimensions are 2000mm x 850mm x 1560mm.
7. Custom screen setting options (screen setting and screen fixing) can be configured according to customer needs, significantly improving efficiency.
8. The machine can be set to print once or twice, in a fully automatic printing mode, depending on the workpiece's printing requirements.

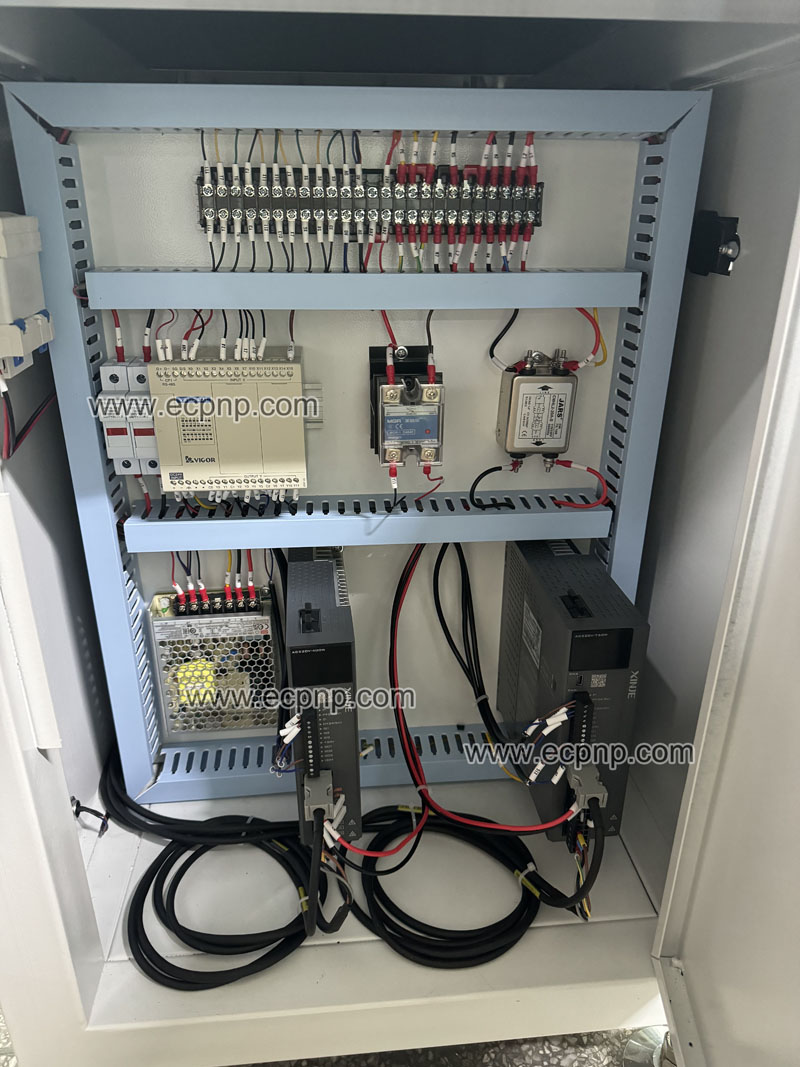

9. Stable performance; the entire machine is controlled by a PLC (Taiwanese Fengwei) programmable logic controller.
10. Special shock absorption device ensures extremely smooth machine operation.

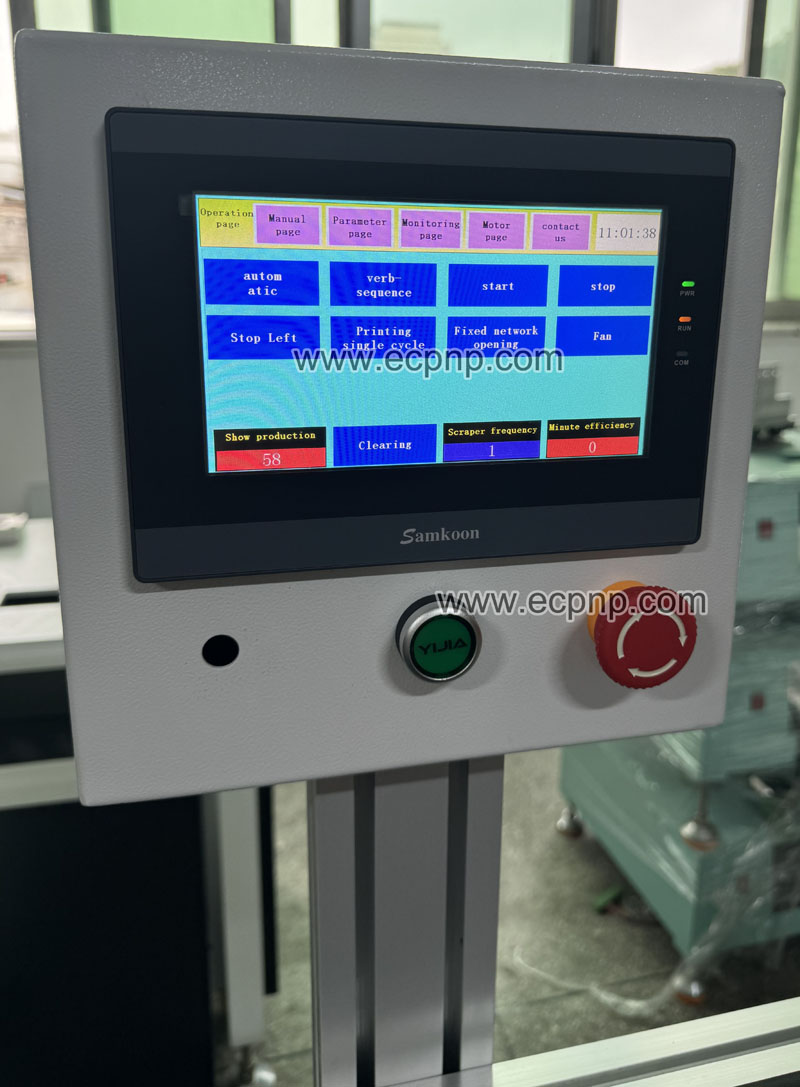

11. Touchscreen control panel allows direct selection of screen printing functions; responsive and easy to use.
12. Two preset programs are available to meet customer needs: single-cycle printing and fully automatic printing.
13. Utilizes the latest pneumatic components, providing smooth, powerful, and durable operation.
14. Once set, the program is stored in memory.
15. 750W servo motor with 1:10 reducer; the production line includes air intake.
Parameter
1. Max Printing Area : 400 x 600mm
2. Max screen frame: 550 x 860mm
3.Max printing height: 150mm
4.Power : 220V 50-60Hz Single Phase
5. Air Pressure : 6 bar
