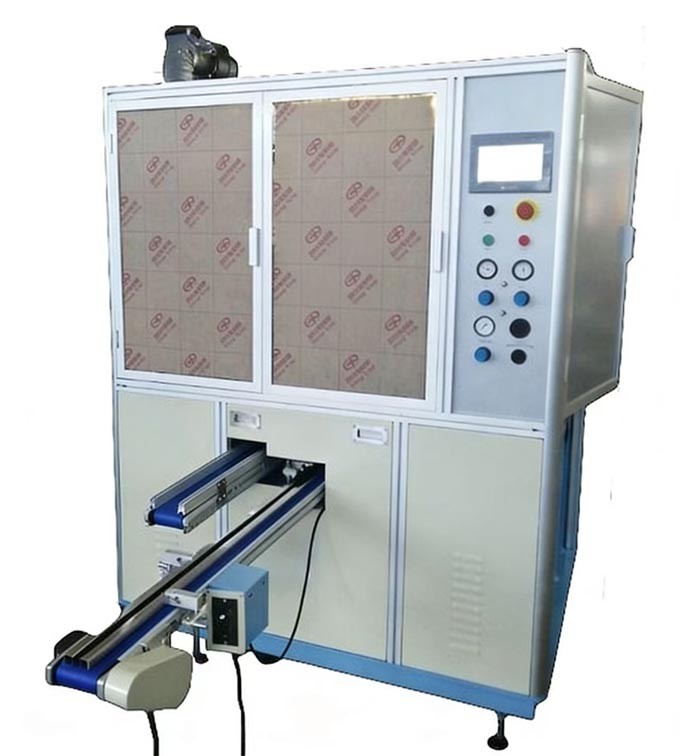

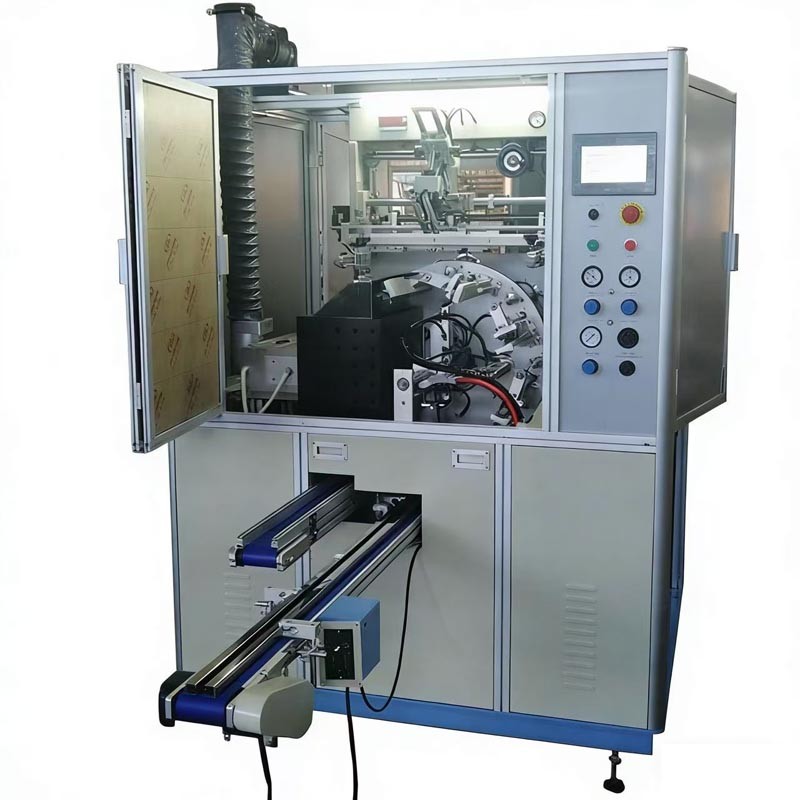

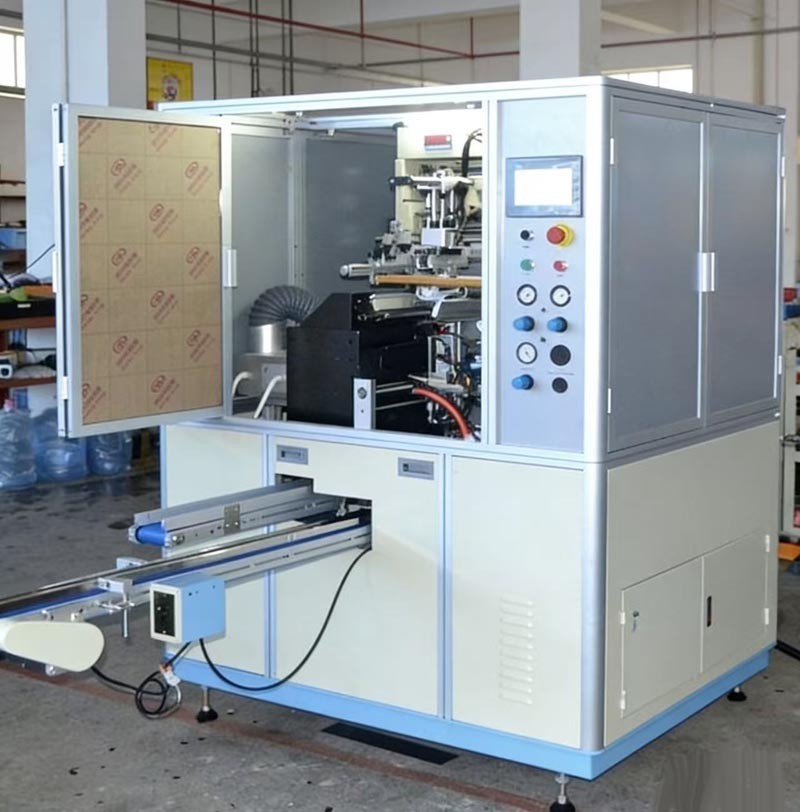

Description
Applications:
Round containers in the cosmetics, pharmaceutical, and food industries, such as toothpaste tubes, test tubes, pen barrels, lipstick tubes, bottle caps, cream jars, and cosmetic tubes.Functions:
1. Designed specifically for screen printing on special round substrates, primarily suitable for round products such as tubes, bottle caps, cream jars, and test tubes.

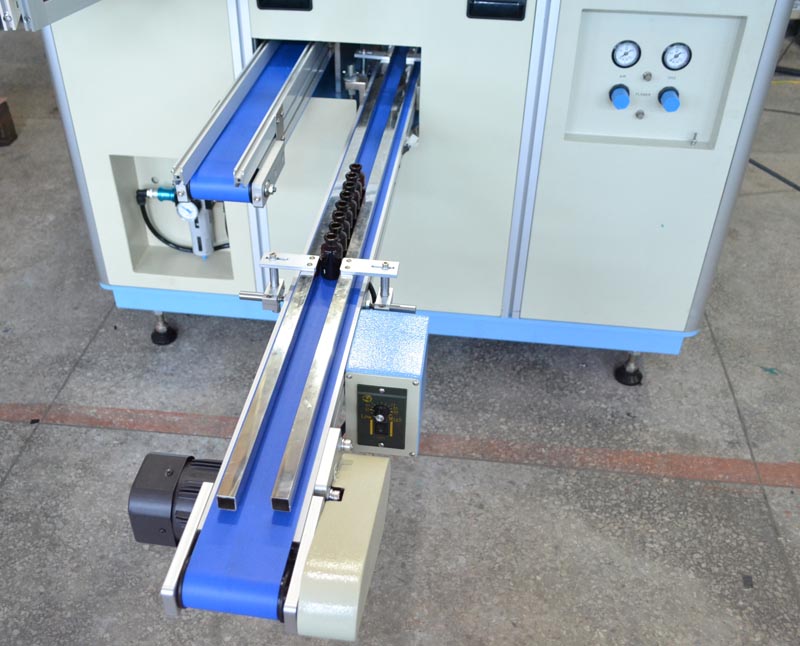

2. The machine integrates multiple functions including synchronous feeding, surface flame treatment, automatic alignment, and UV drying.
3. The entire machine features mechanical transmission and touchscreen operation, facilitating easy human-machine interaction.
4. Electronic sensors enable automatic monitoring functions such as "no printing without a part" and low air pressure alarm.
5. Servo line alignment system for precise control of line travel: The servo fiber optic alignment system allows for precise alignment of some products.
6. All electrical components and control systems utilize German and Japanese components, ensuring stable machine operation.
Parameter
1. Max printing speed : 3600pcs /hr
2. Max printing area : 220mm x 170mm (Φ70mm)
3. Printing Product Size :
Φ10mm < Diameter < Φ70mm
20mm < Height < 200mm
4. Power : 380V 50 Hz 5kw
5. Machine dimension: 1950mm x 1800 mm x 2200 mm
6. Weigth : 1000 kg
Main Parts
Main Motor : Italy SITI
PLC : Japan Omron
Touch Screen: TaiWan WEINVIEW
Contactor: France Schneider
Swtich : France Schneider
Sensor : Japan Omron or Germany Leuze
Inverter : Japan Omron
Relay : Japan Idec
Servo : Japan Fuji
