Description
Advantage

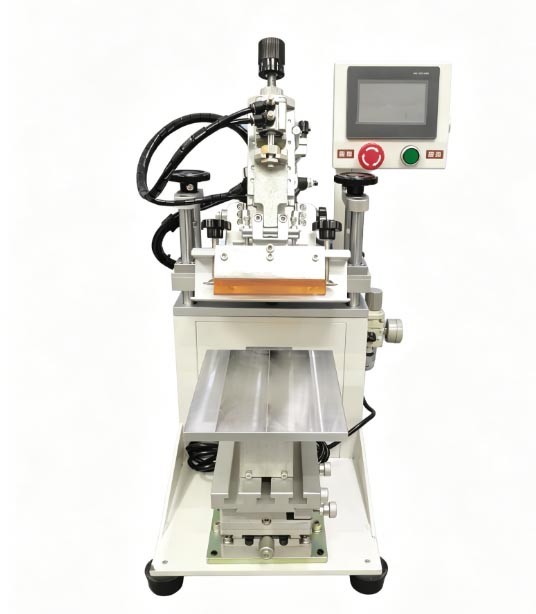

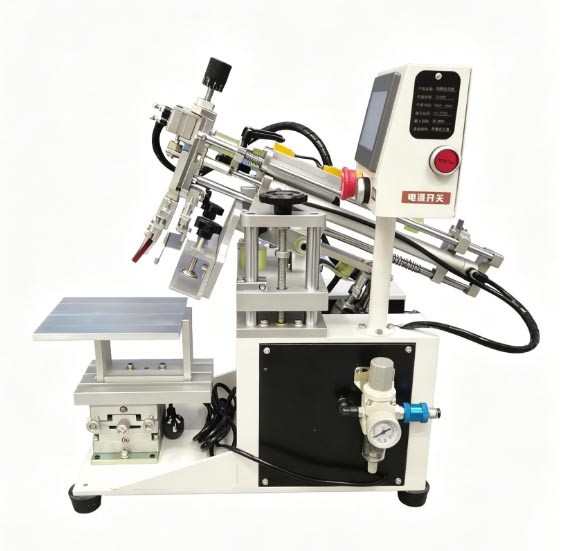

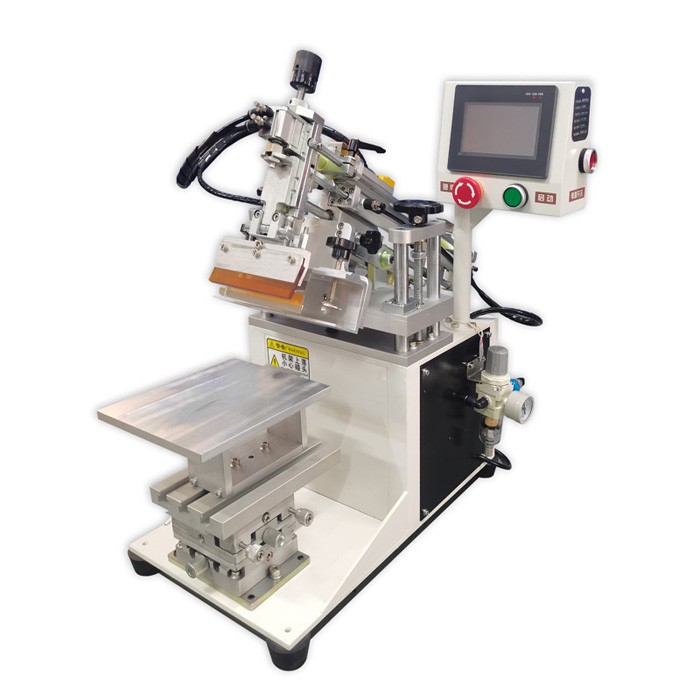

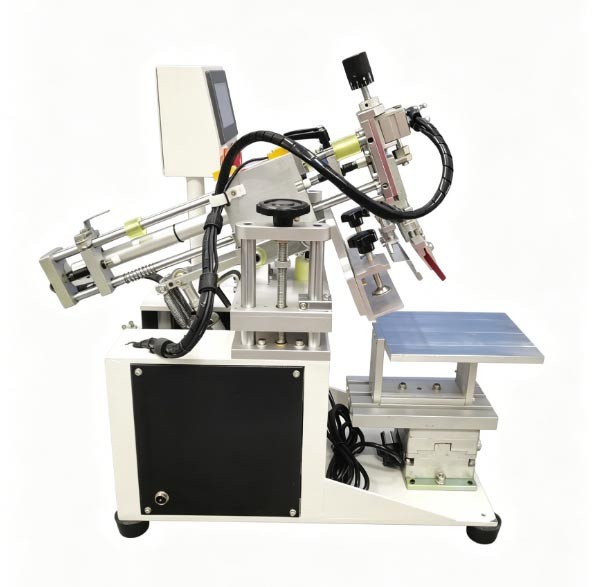

1. This small flatbed screen printing machine features a rocker arm lifting mechanism, enabling faster printing speeds up to 2200 prints per hour. Combined with a PLC control system, machine setup is more convenient and efficient. It is suitable for substrates with a height of 180mm or less.2. The worktable can rotate in the XYR directions, and the overall height of the squeegee and screen arm is adjustable, making machine setup easier. The screen arm and squeegee have a clutch mechanism for easy screen installation and cleaning of the squeegee or return blade. Adjusting the clutch mechanism does not affect printing accuracy; repeated loading and unloading can achieve a printing accuracy of ±0.02mm, suitable for high-precision multi-color screen printing.
3. The machine operates smoothly and quietly without vibration, making it suitable for home or office use without disturbing neighbors. The machine, including the cylinders, incorporates eight buffer devices for even smoother operation.
Parameter:
1. Max printing area : 160x220mm
2. Max Screen size: 250 x350mm
3. T-slot Working table size: 120x170mm
U-slot Working table size: 160x200mm
4. Printing accuracy: 0.08mm
5. Max printing height: 180mm
6. Power: 110V/220V 50-60hz Power:50w
7. Air pressure: 4-6bar
8. Machine dimension: 68 x 42 x 62 cm
9.Machine Net Weight: 42kg
10. Packing dimension: 80 x 60 x 78cm GW:58kg
