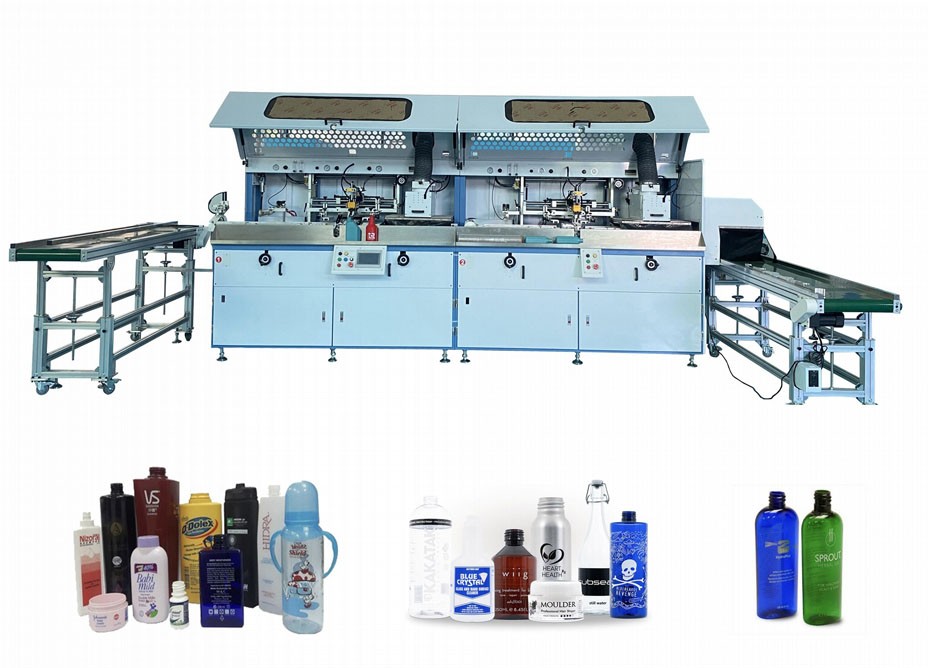

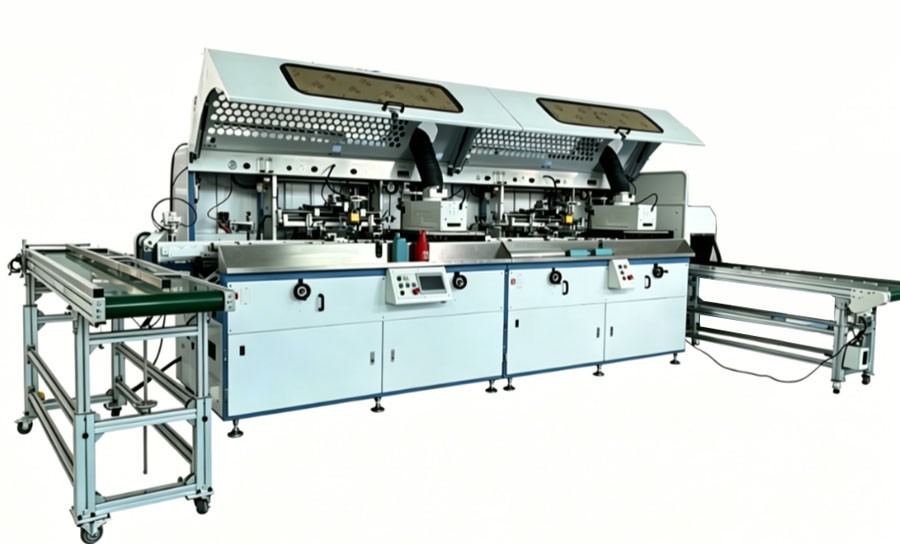

Plastic Bottle Automatic two colour cylinder UV Screen Printing Machine

Description

Applications:
Round, flat, square container cosmetic, pharmaceutical and food industry, such as cosmetics bottles, detergent bottles, beverage bottles, baby bottles, space cups, filters, jars and the like.
Function descriptor:
1, it consists of a single host and multiple vice unit multicolor printing production line synthesis.
2, designed for round and oval-shaped screen printing and design, simple and reasonable structure, convenient debugging, fixed line is stable and reliable.
3, the whole integrated synchronous feeding, surface flame treatment, automatic pre-alignment, automatic printing and UV (ultraviolet curing) and other features.
4, the whole machine realization mechanical transmission, touch screen operation, easy to achieve human-computer dialogue.
5, electronic sensors to achieve "no member not print," low pressure alarm automatic monitoring and other functions.

6, the whole machine electrical components and control systems used in Germany and Japan components, ensure that the machine is stable.

Technical Parameters:
The fastest printing speed: Oval 4000pcs/hr        Round 3600pcs / hour
Max print length: Oval-120mm                                  Round-270mm
Max print wide:      Oval  diameter：Φ25-Φ260mm      Round  diameter：Φ25-100mm
Oval  Length ：  60-270mm           Round  Length ：  60-270mm
Power supply:       AC380V  3Phase  50-60Hz
