Description

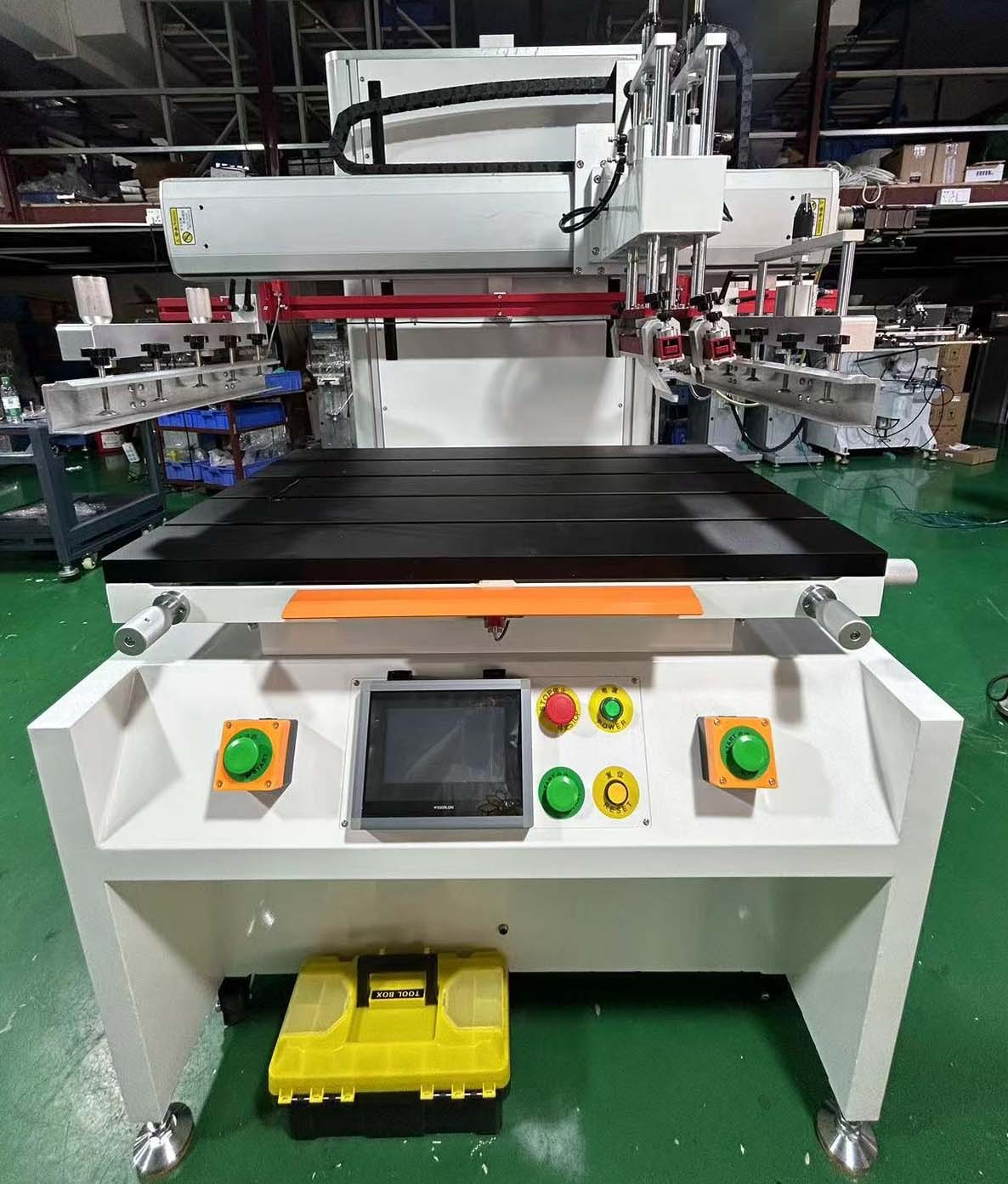

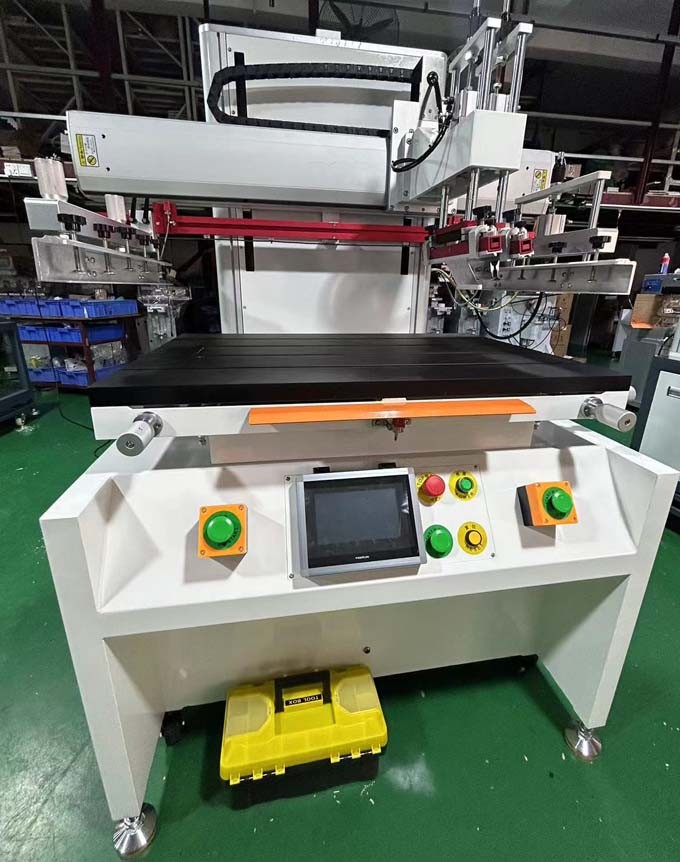

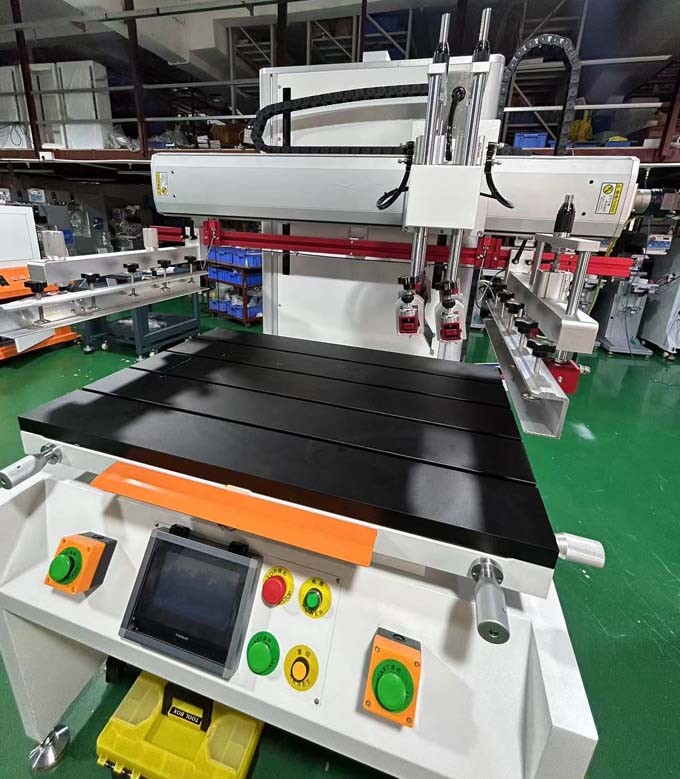

Double Servo Flat Screen Printing Machine with T Slot Table
Specification
Workbench area: 700mm*1000mm
Max Printing Area: 600mm*900mm
Max Screen Size: 800mm*1100mm
Double Servo Product Max Height: ≦100mm
Workbench Horizontal Precision: ±0.05
Overcolor Print Precision: ±0.01
Printing Pressure: 4.0-6.0Kgf/C㎡
Operation Air Pressure:0.3Mpa-0.5Mpa
Source Power: 2kw
Rated Voltage: 110V/220V single phase 220V/380V 3 phase
Main Parts

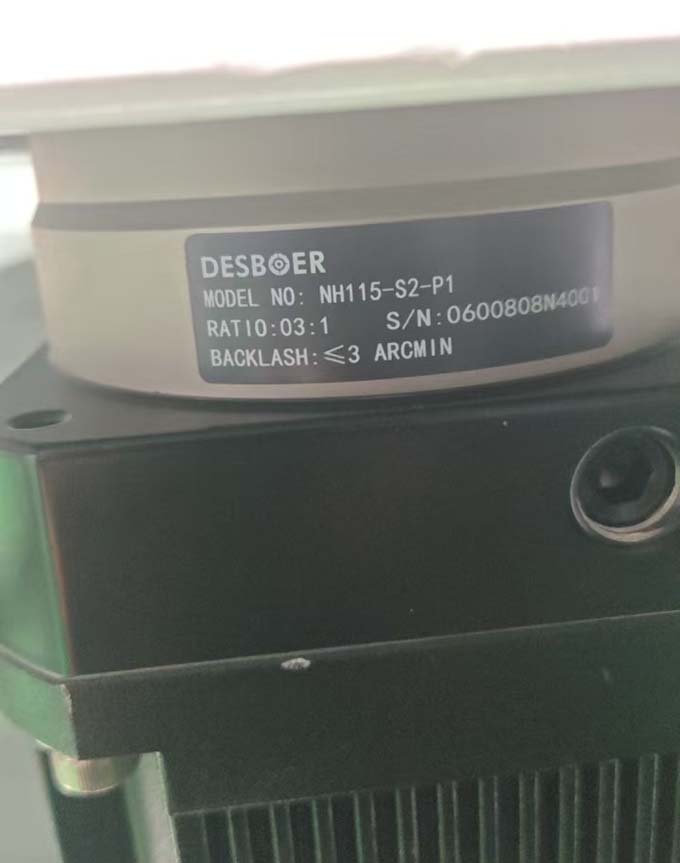

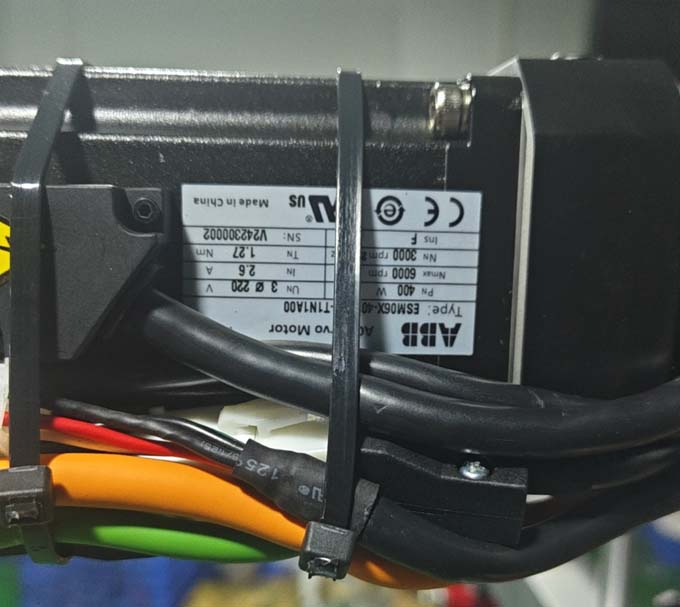

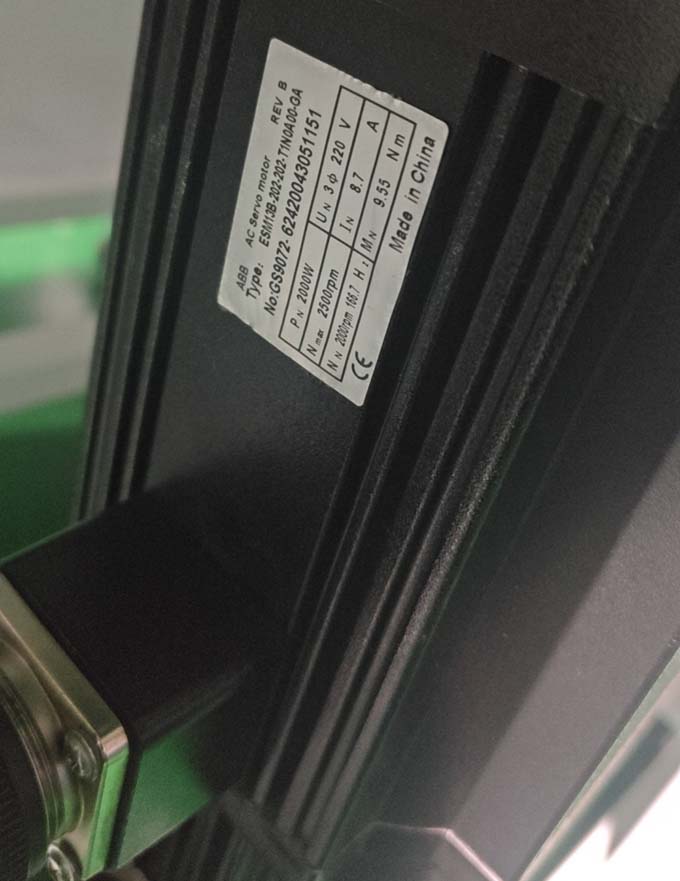

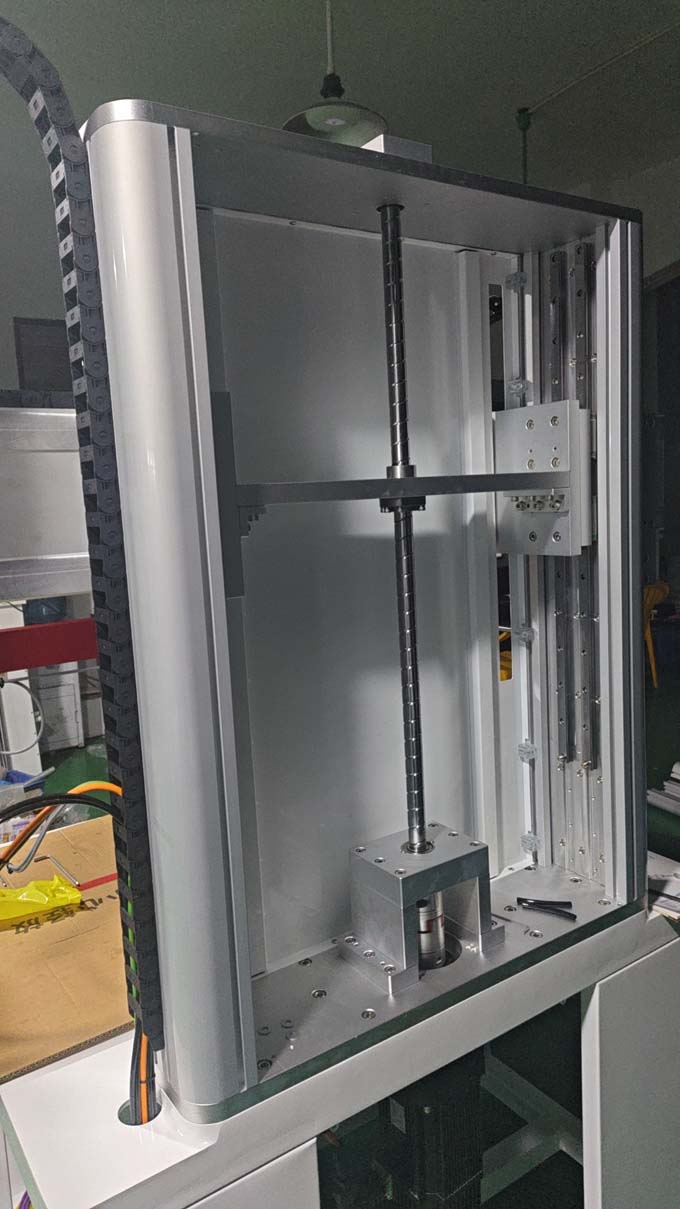

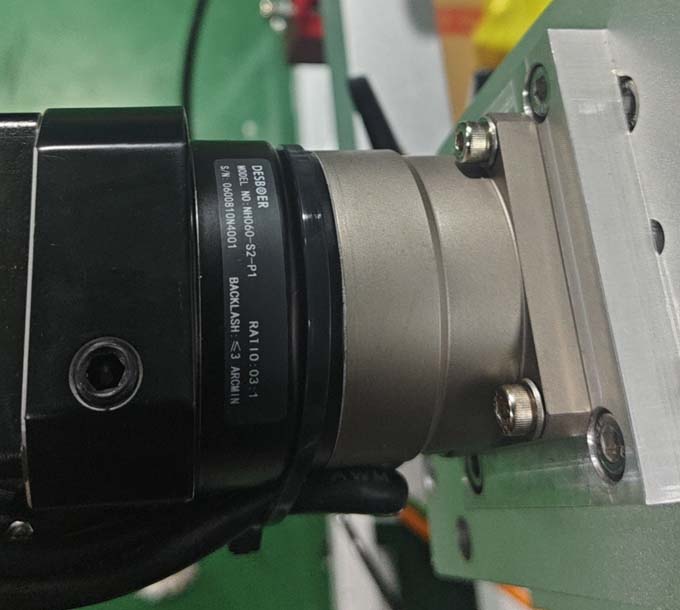

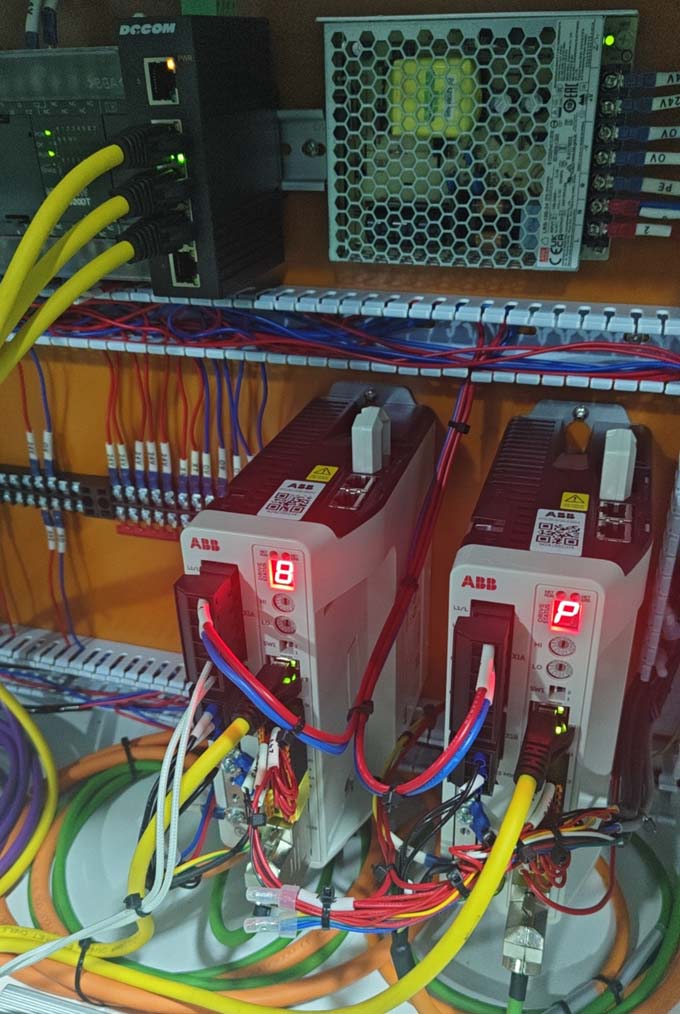

1) machine head up and down , ABB servo , TaiWan HiWin guide rail . TB1 Grinding screw . Japan DESBDER Planetary reducer

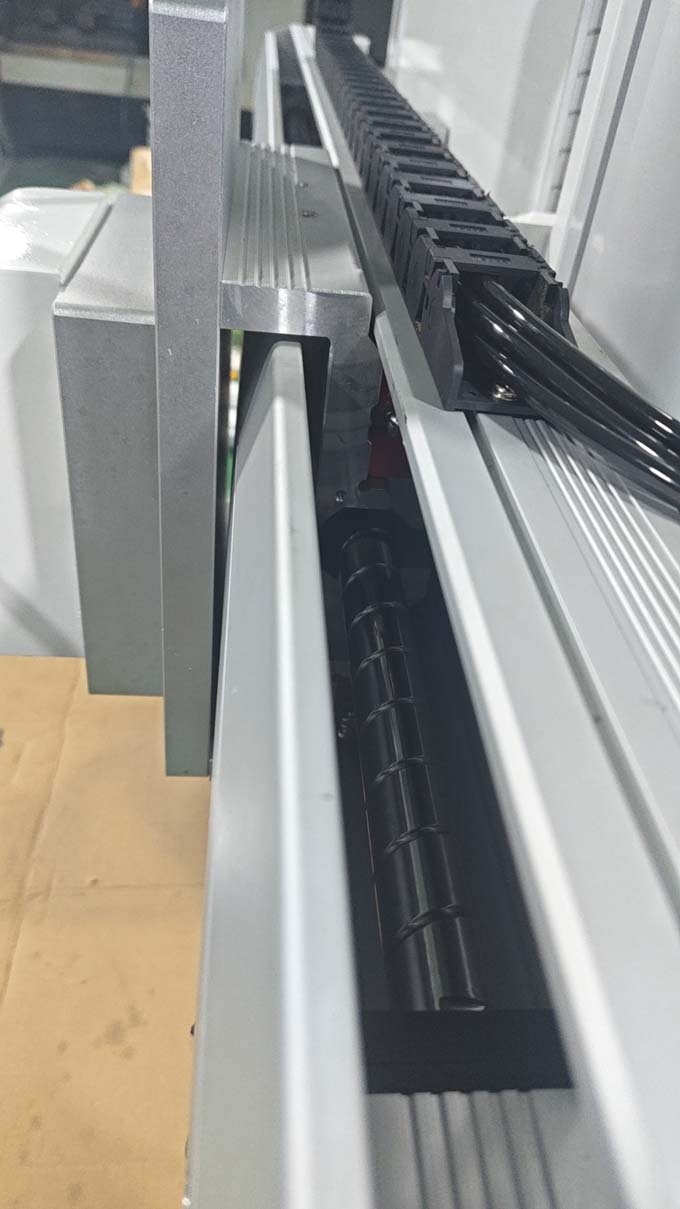

2) machine printing left and right , ABB servo , TaiWan HiWin guide rail . TB1 Grinding screw . Japan DESBDER Planetary reducer
3) touch screen : USA WEINVIEW
4) PLC : Japan Hitachi

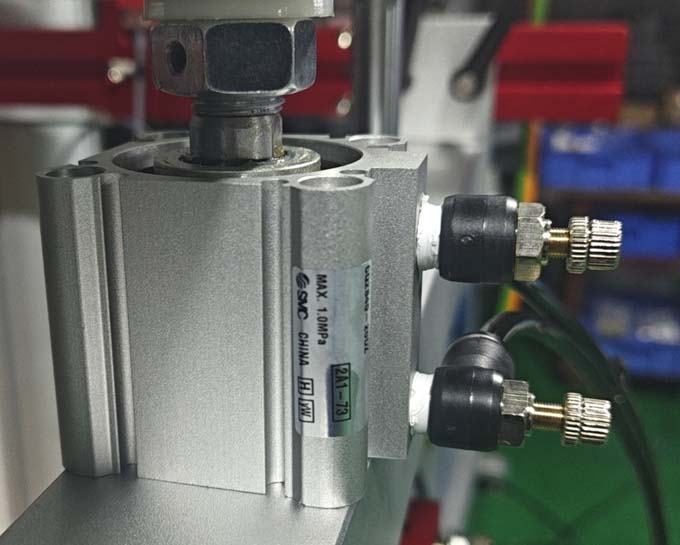

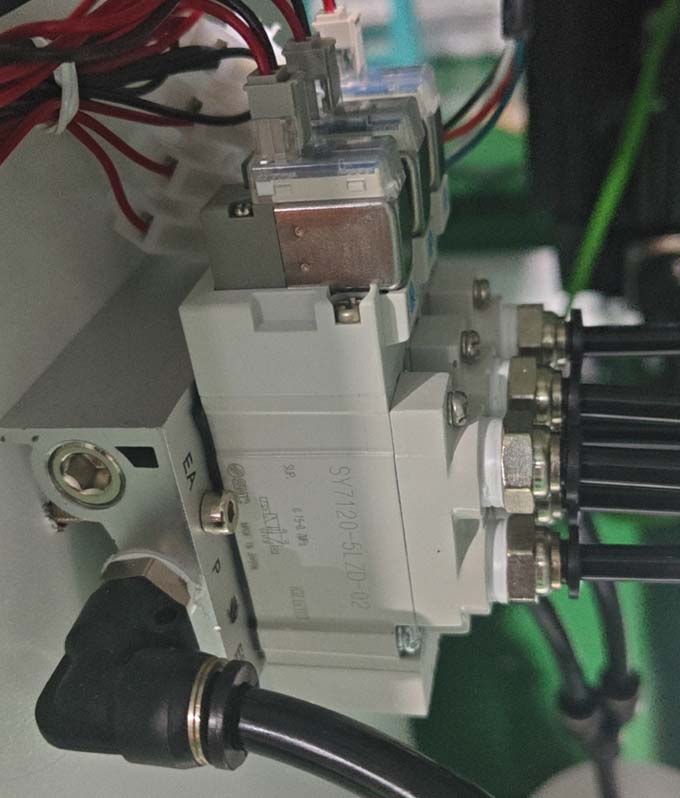

5) pneumatic element : Japan SMC
6) sensor : TaiWan Fotek

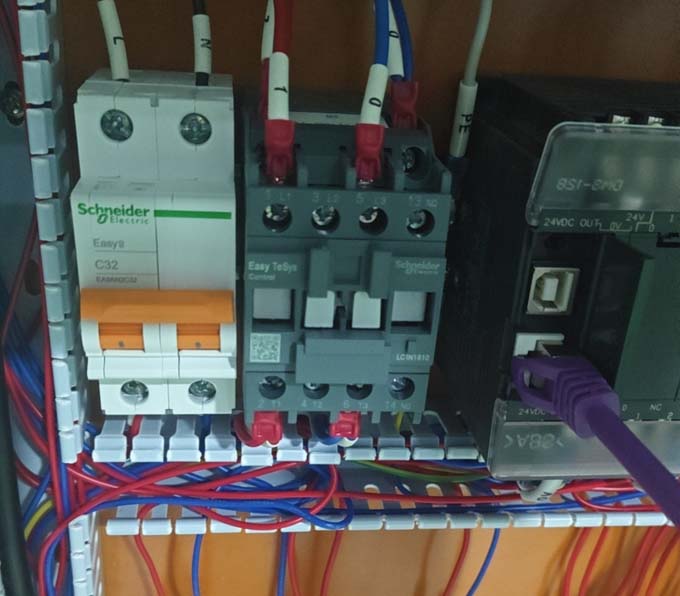

7) electric appliance: Schneider Electric
Specification
Workbench area: 700mm*1000mm
Max Printing Area: 600mm*900mm
Max Screen Size: 800mm*1100mm
Double Servo Product Max Height: ≦100mm
Workbench Horizontal Precision: ±0.05
Overcolor Print Precision: ±0.01
Printing Pressure: 4.0-6.0Kgf/C㎡
Operation Air Pressure:0.3Mpa-0.5Mpa
Source Power: 2kw
Rated Voltage: 110V/220V single phase 220V/380V 3 phase
Main Parts
1) machine head up and down , ABB servo , TaiWan HiWin guide rail . TB1 Grinding screw . Japan DESBDER Planetary reducer
2) machine printing left and right , ABB servo , TaiWan HiWin guide rail . TB1 Grinding screw . Japan DESBDER Planetary reducer
3) touch screen : USA WEINVIEW
4) PLC : Japan Hitachi
5) pneumatic element : Japan SMC
6) sensor : TaiWan Fotek
7) electric appliance: Schneider Electric
8) machine color : customized

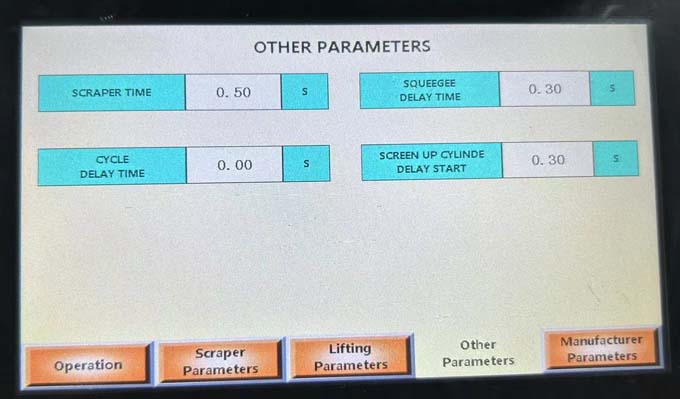

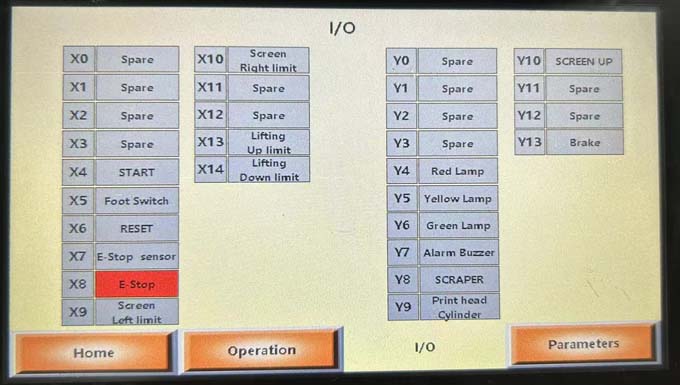

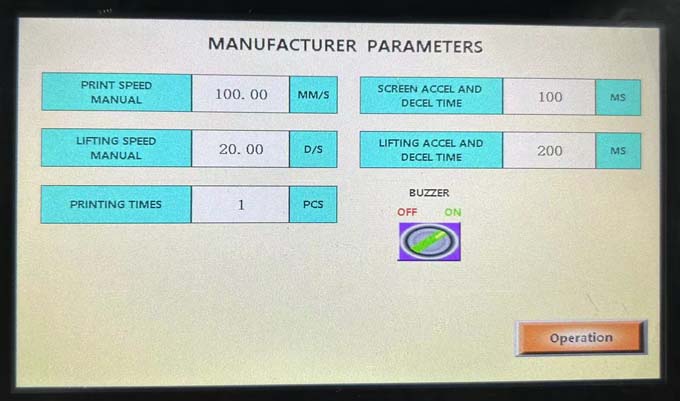

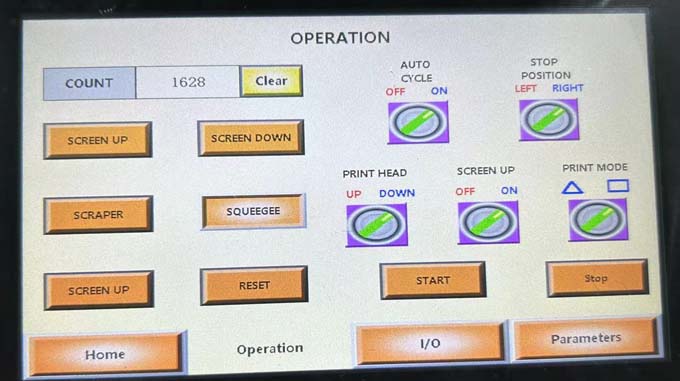

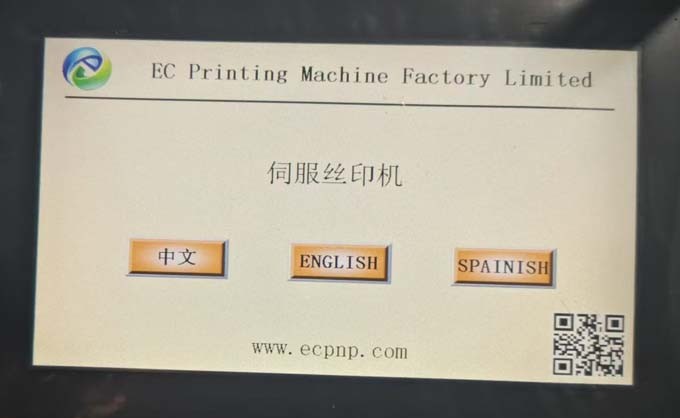

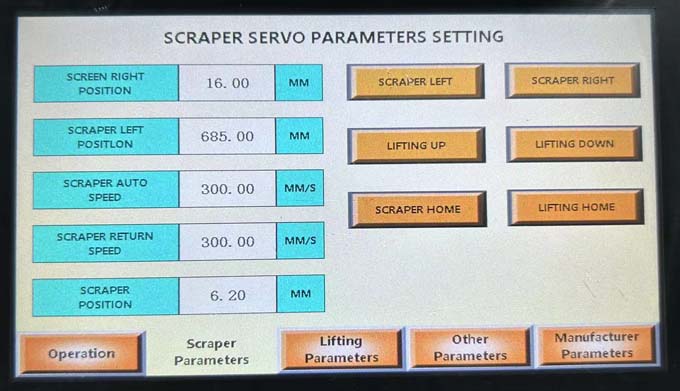

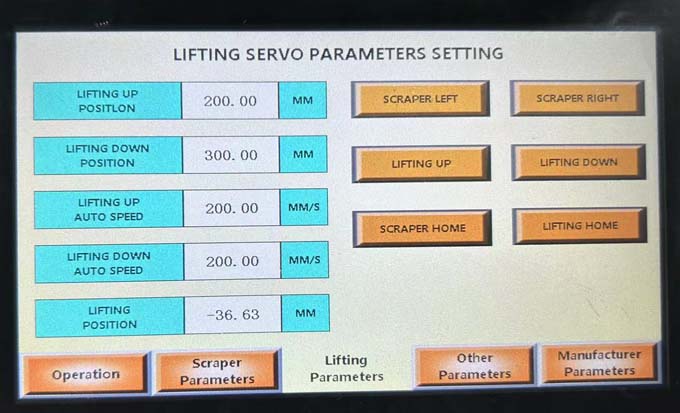

English Operation System

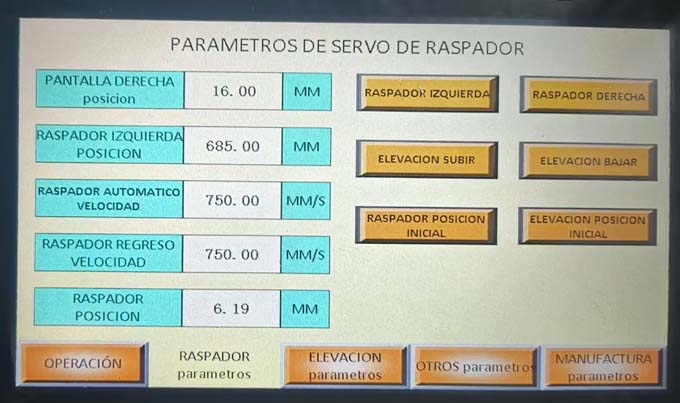

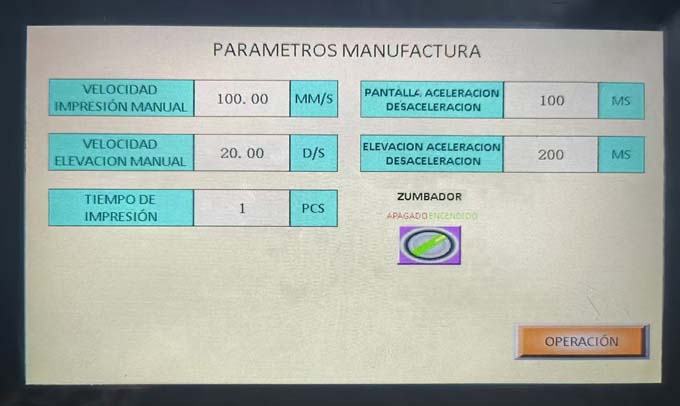

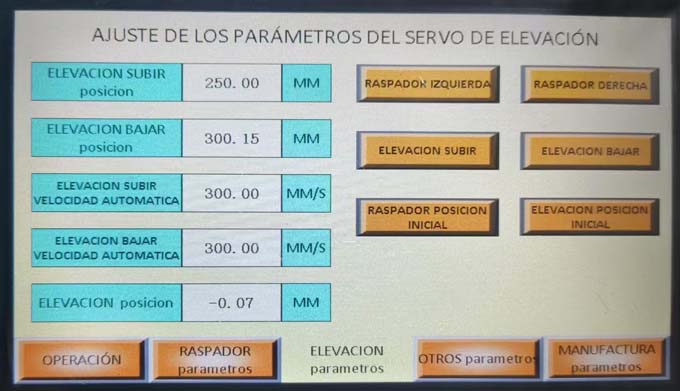

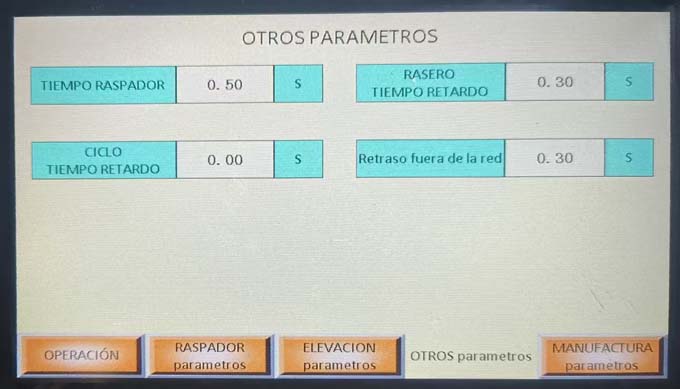

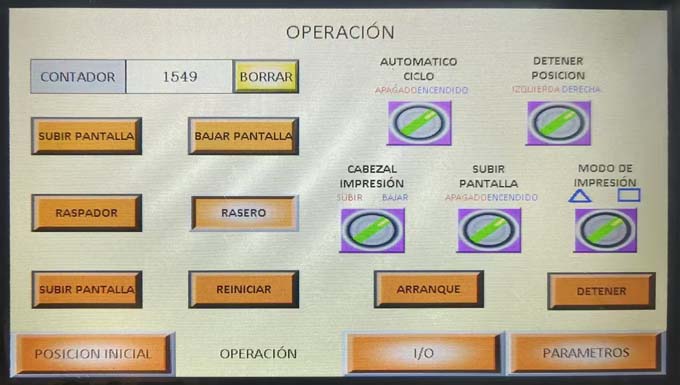

Spaninsh operation system
