Description

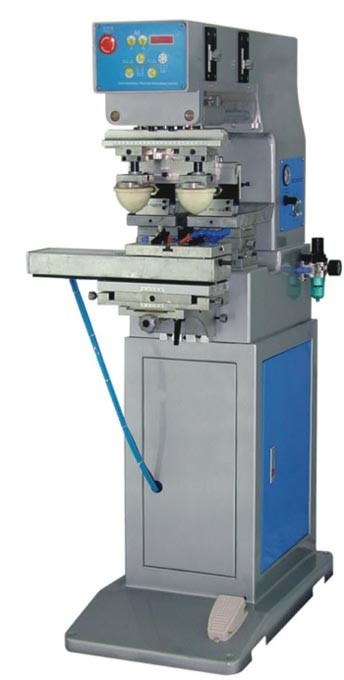

It is a medium sized 2 color pad printing machine with shuttle with bigger size steel board and long ink tray distance centre. It can finish 2 color overprint for big pictures, adjusting conveniently, operating steaby.It is suitable for printing electronic products, plastic shell, hardware products, stationary, small arts and crafts, logo on the surface of gift.
Feature
1.SCM IC complile action program,kinds of printing model option
2.Auto 4-digit counter built-in,and stat. Printing quantity
3.Airframe adopts coin alloy,and metal coating surface
4.Worktable, printing head and ink tray can be adjusted X.Y.Z direction
5.Sucking ink and the pressure of printing pad can be adjusted independently .
6.Scrapper stroke can be adjusted
7.It has function of leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification
8.The speed of all the cylinders have an independent regulator intortum
9.Adopts original Japan SMC and Taiwan MINDMAN pneumatic component
10.Each adjustable location has scale logo
11.It has the function of forbiding the pad fallen when no air pressure enter into
12.The machine is running fastly,it is steady and low voice
13.Stoping shuttle work-table, you can use it as a 1 color pad printer with two heads
Specification
Steel plate size: 100*150mm
Printing speed: 800pcs/hr
Power: 220V 50-60HZ 30W
Air pressure: 5-7bar
Action model option: fully automatic | semi-automatic | Self-Programming | manual
Start-up method:panel | foot switches
Scraper working style: Pneumatic mechanical valve drives cylinder up/down
Scraper pressure controller: by pressure regulating Valve
Transversa distance：160MM
Vertical distance：75MM
Max.printing area：60*120MM
Centre distance of ink tray: 150MM
Repeat precision: <0.05MM
Printing workstation: 1 PCS
Fixuping clamp method：T-slot table, code pressure compress heavily
Choosing the material of clamp: Automobil Putty/ Aluminum/plastic/steel
Plastic fastness style: by wooden bolt
Net weight : 135Kg
Shape dimension:750× 550× 1380mm
