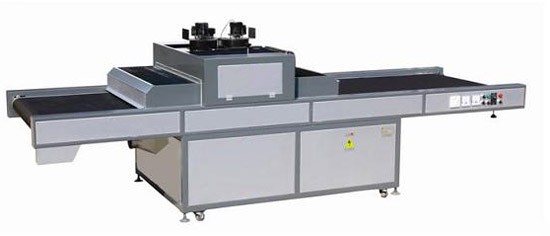

Flat UV Drying Machine

  • Model:UV1000
  • Views:405
  • Flat UV Drying Machine
    Inquiry Send Email

    Description

    1. Application Scope
    It's apply to the the special effects such as wrinkle ,frosted refraction gem crystal and convex oil on the bullion paper board ,metal ,glass, plastics ,and also the UV cutting of the offset printing ink on the offset press production.
    2. Characteristics
    With Teflon or stainless steel net , transmit speed steady and can be adjusted.
    With two UV lighting tubes ,can turn on the light according to the need.
    Wink-dry make the surface of the stocks high hardness and rub resistance.
    Tunneling-based make the whole machine light barrier good and without harm
    Equipped with powerful nether induced draughe system and big intake airway ,can absorbs the stock on the mesh belt hard
    Can be used with production line and other equipment easily.
    3. Technical parameters:
    Conveyor belt width: 980mm
    Length : 2500mm or 4000mm (optional)
    Max product thickness: 50mm
    Power:: 380V  3 phase  12.5kw
    Air cooled fan :  2 pcs 90w fans and 1 pcs 550w fan
    Conveyor speed:0-30 m / min
    UV light power : 5.6kw /2pcs  or  5.6kw /3pcs  (optional)
    Weight:  350kg
