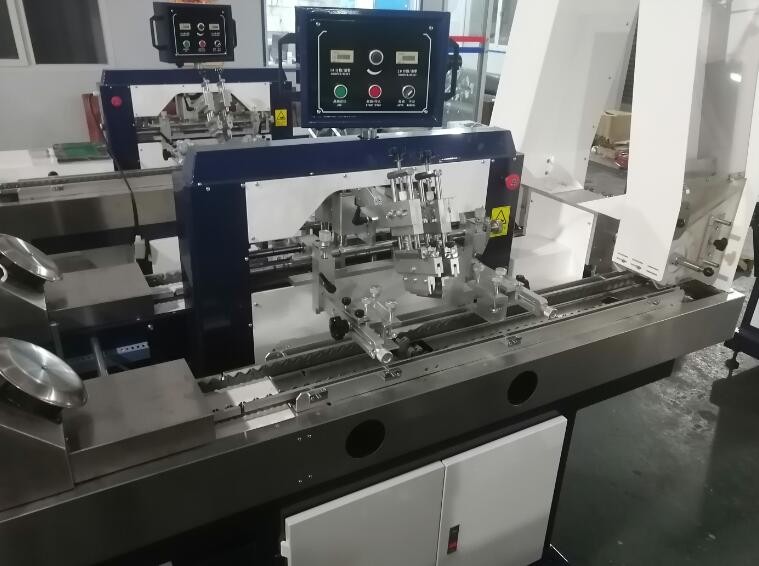

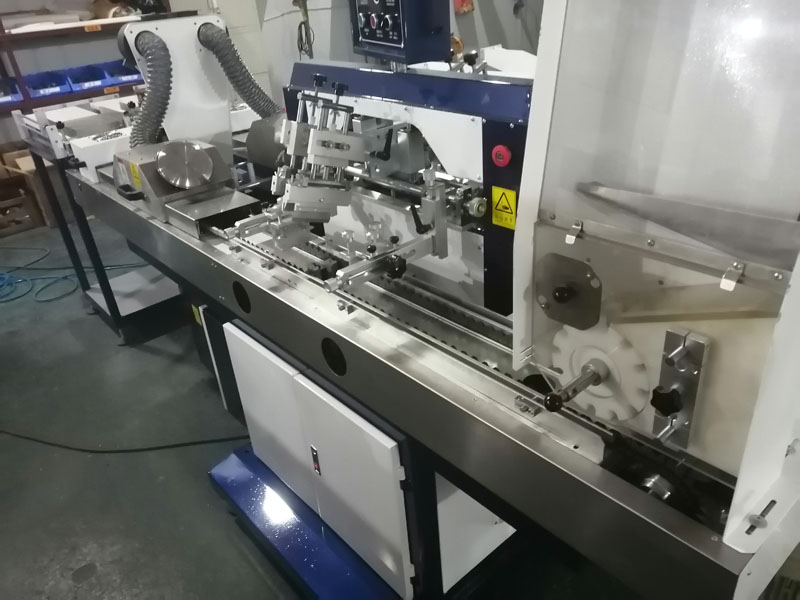

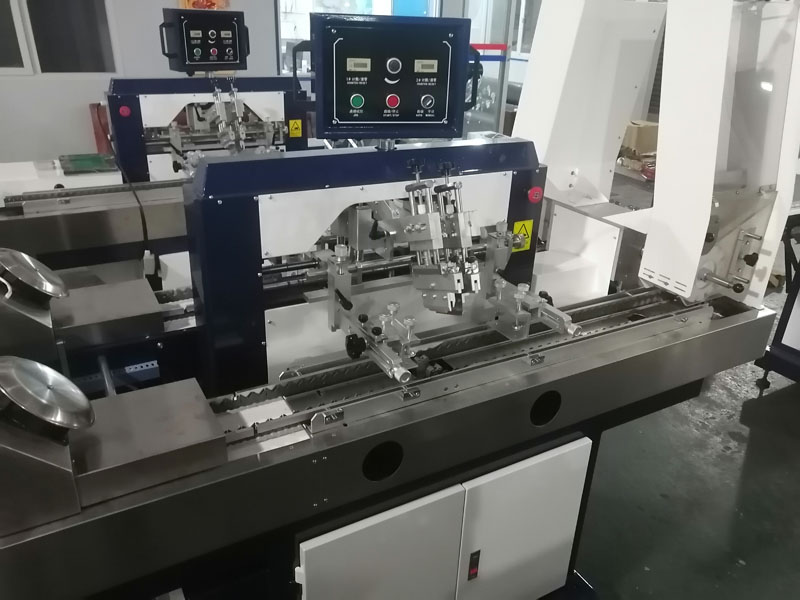

Description
SPECIAL FUNCTION:
1. One worker operate, the two work stations will be printing at the same time. Easy operation for stopping, cleaning screen printing plate, adding ink, etc..,2. It can print ampoule size from 1ml~10ml(fixctures need to be customsized)
3.The printing baseplate has the vacuum function(optional) which can keep the precision of registration.
4. High printing speed, output: 7000pcs/hour
5. It can print two kinds of printing objects at the same time.
6. Installed compressed air dust-abatement device to clean the printing objects before printing.
7. Double scrapers design to keep printing and ink flooding perfectly and reliable.
(The machine is designed according to many clients suggestions and their practical application. It is improved many times and all the time, easy operation and reliable quality)
BASIC FUNCTION:

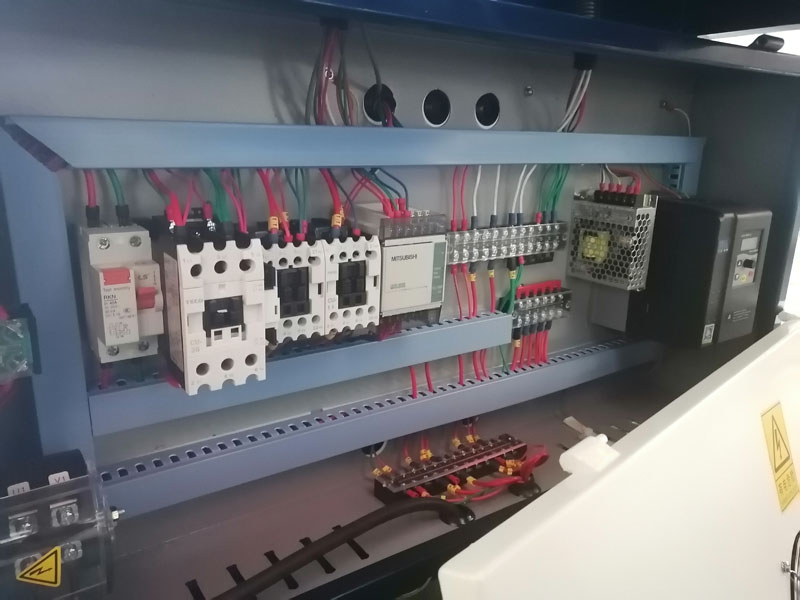

1. Almost Full electric control, low need compress air.

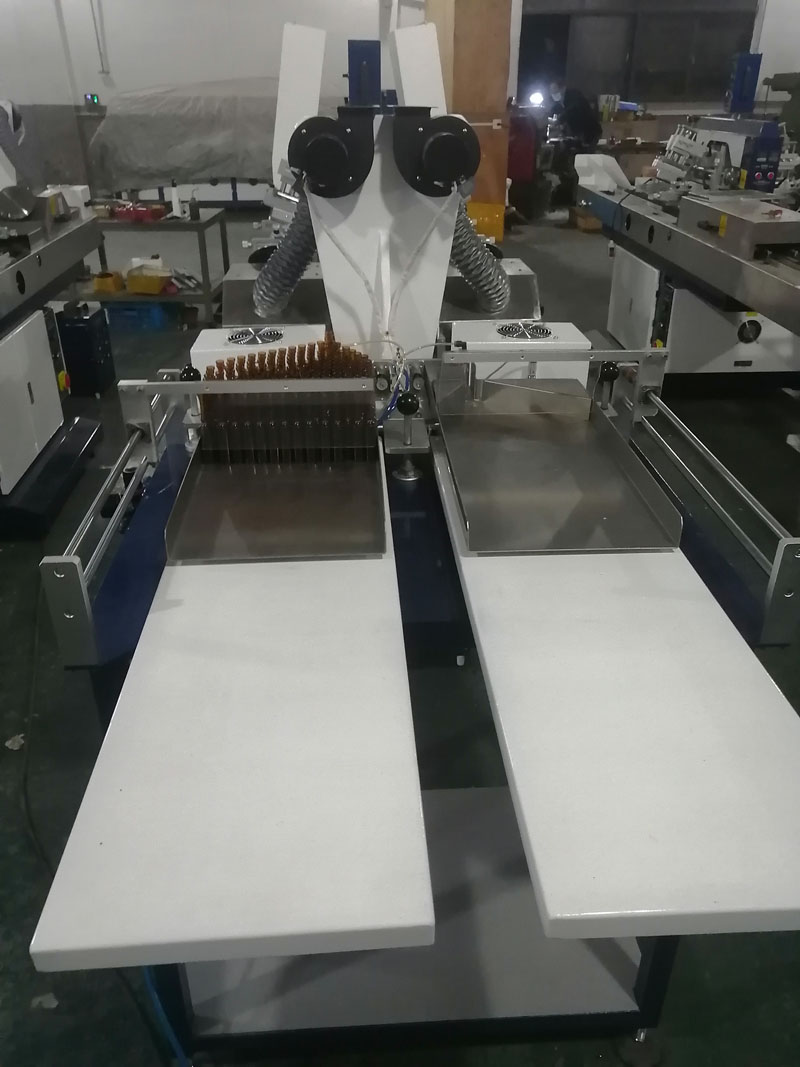

2. Loading and unloading printing objects automatically, one or two kinds of printing objects can be printed at the same time.
3.The machine run smoothly, and the printing speed and printing stroke are adjustable.

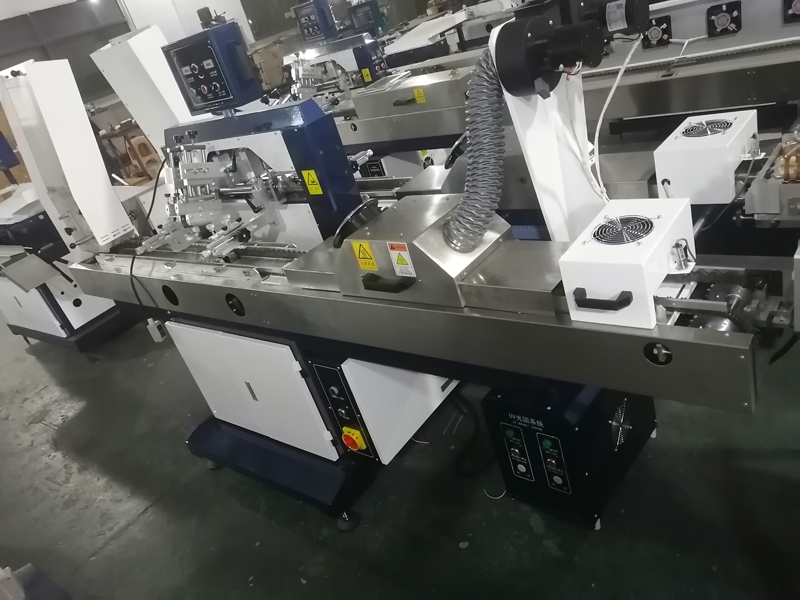

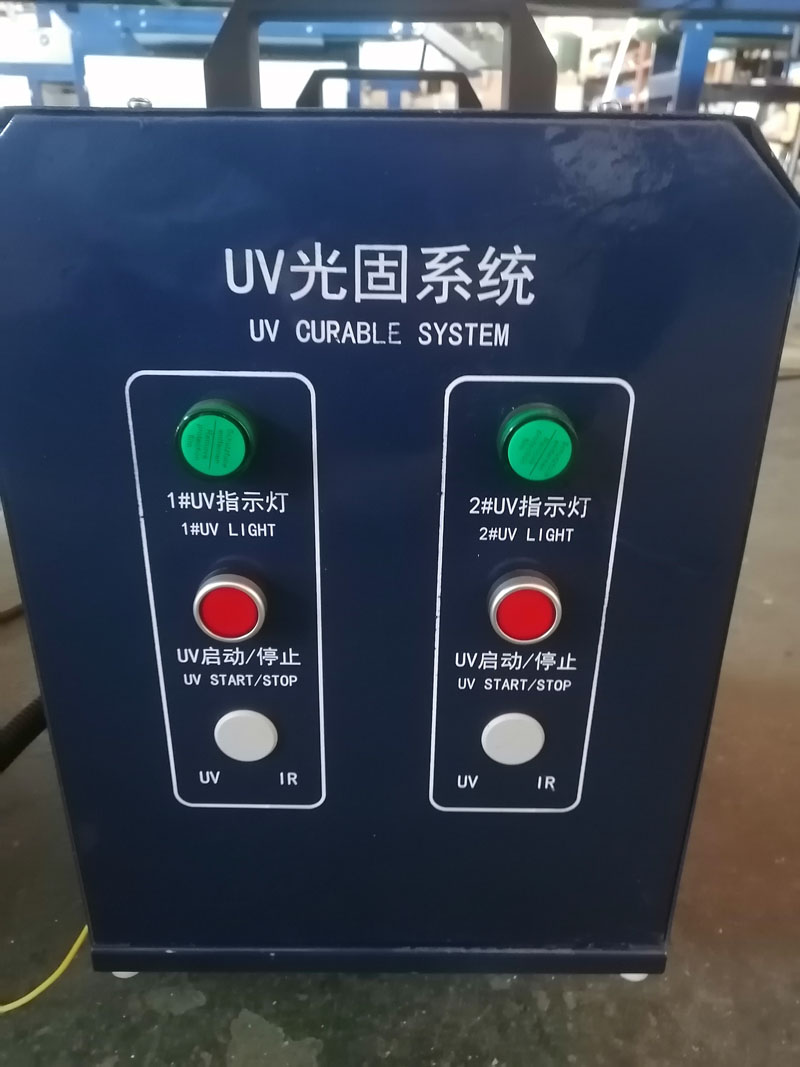

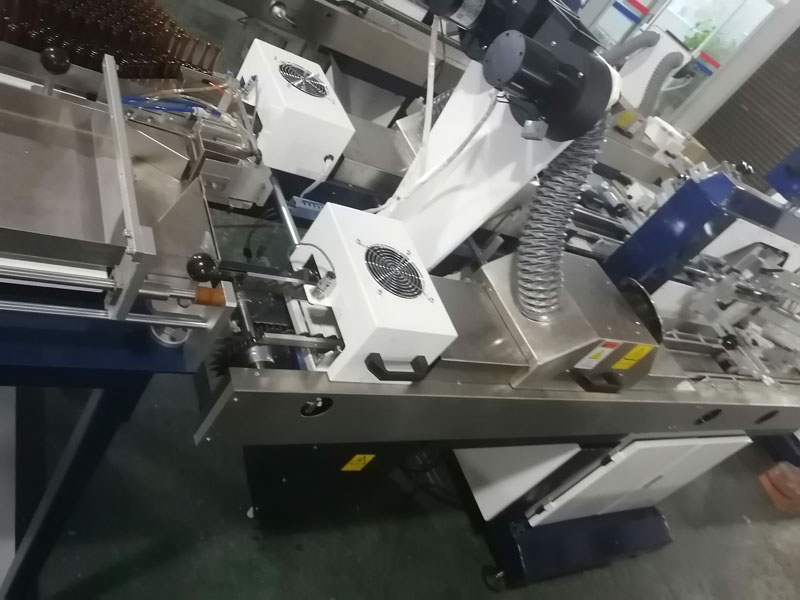

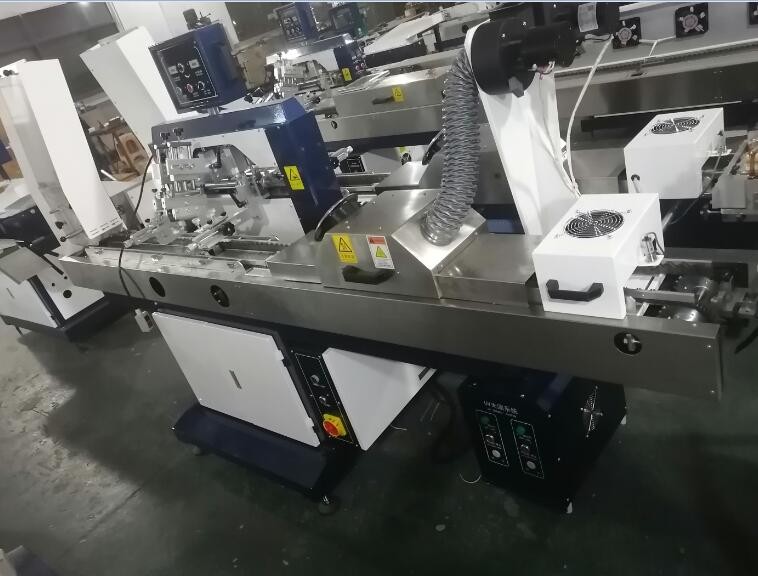

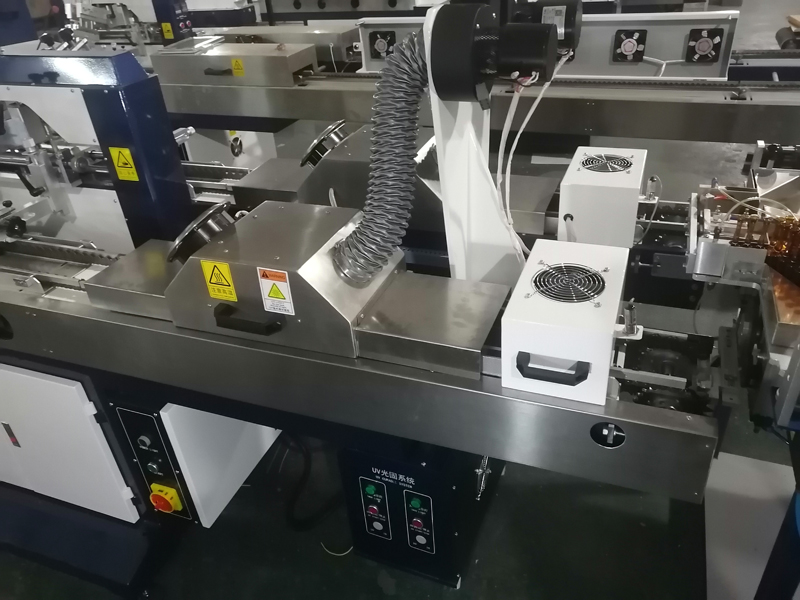

4.Adopt UV ultraviolet radiation drying system, printing and drying can be finished at the same time.
TECHNICAL PARAMETER
1.Diameter of printing objects: φ5～φ20mm
2.Length of printing objects: 60～160mm
3.Width of printing route: 20～80mm
4.Printing Speed: 7000pcs/hr
5.Power: 220V 50/60Hz 6KW
6.Weight :830kg
7.Machine Dimension: 3730×1120×1520mm
