Description
Application:

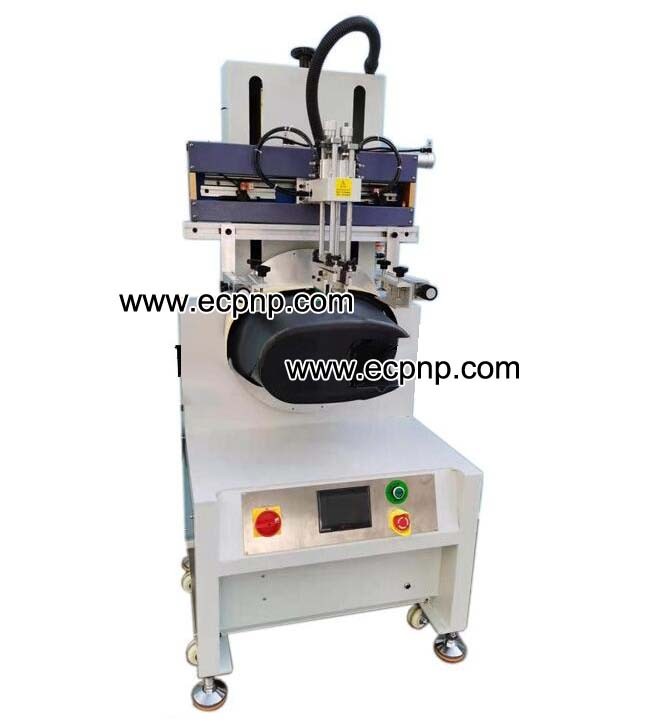

Be applied to the flat surface printing with rotary jigs, you can print on both side with same logo without reputing product .
One Time Finish Two Face Printing.

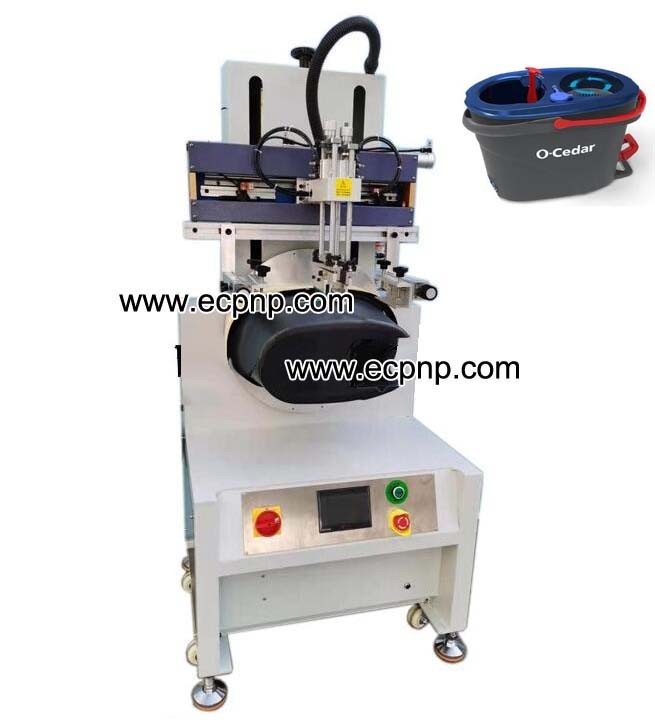

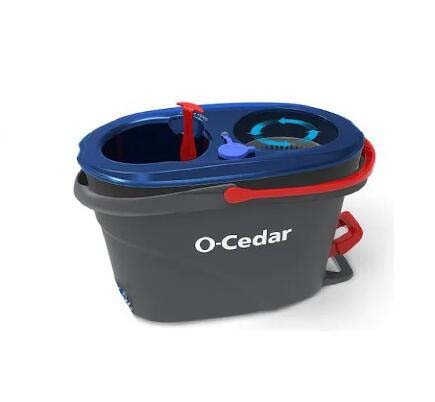

Good for mop buckets, beer box and other cube kinds of products.
Function
1. Controlled by PLC Touch Screen, Easy to operate.
2. Adjustable Print speed fit for the different printing request.
3. Constant pressure device of the ink blade, made sure the pressure in the printing is steady.
4. Rotary jigs, print on 2 sides automatic;
5. Convenient pedal switch, simplicity of operation, maintenance friendly.
6. Independent printing and ink-return system.
7. Print speed and print size adjustable,scraper angle adjustable,screen frame size adjustable.
Specification：
Be applied to the flat surface printing with rotary jigs, you can print on both side with same logo without reputing product .
One Time Finish Two Face Printing.
Good for mop buckets, beer box and other cube kinds of products.
Function
1. Controlled by PLC Touch Screen, Easy to operate.
2. Adjustable Print speed fit for the different printing request.
3. Constant pressure device of the ink blade, made sure the pressure in the printing is steady.
4. Rotary jigs, print on 2 sides automatic;
5. Convenient pedal switch, simplicity of operation, maintenance friendly.
6. Independent printing and ink-return system.
7. Print speed and print size adjustable,scraper angle adjustable,screen frame size adjustable.
Specification：
|
Model： |
EC-2030DP
|
Touch Screen: |
WeView |
|
Max print area： |
200*300MM |
Print Cylinder: |
Airtac |
|
Max frame size; |
300*550MM |
Up/Down Cylinder: |
Airtac |
|
Air pressure: |
5-7Bar |
Rotary motor: |
HG divider |
|
Power: |
220V 750W |
Sensor: |
Fotek |
|
Machine size: |
1000*1000*1700MM |
Package size: |
1100*1100*1850MM |
|
Machine weight: |
200KG |
Package weight: |
260KG |
