Description
The HY-767-2 Two color automatic UV bottle screen printing machine, Print speeds up to 70 bottles per minute, Prints on round & oval containers, Mechanical walking beam indexed, Intelligent UV system save energy consumption, Omron PLC and touch screen controlled, Integrated anti-static blowing and flame treating.
Features
2 color automatic UV bottle screen printing machine
Fast print speeds up to 4200 bottles per hour
Accurate color to color registration
Prints on round, oval and square bottles

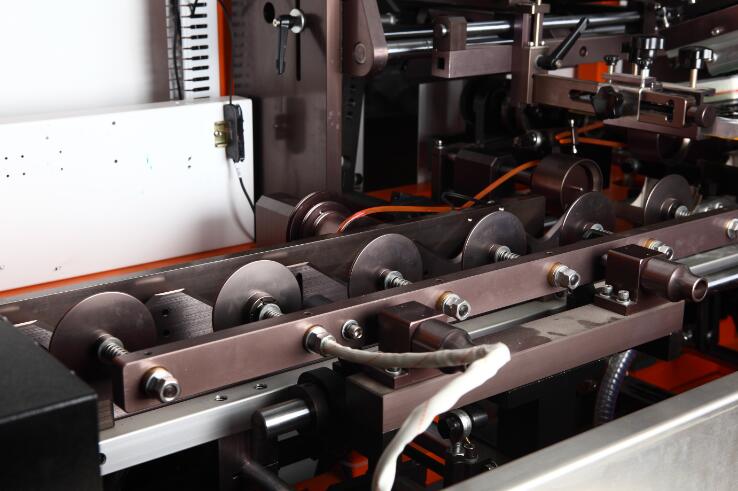

Mechanical driven bottle transport in high stability

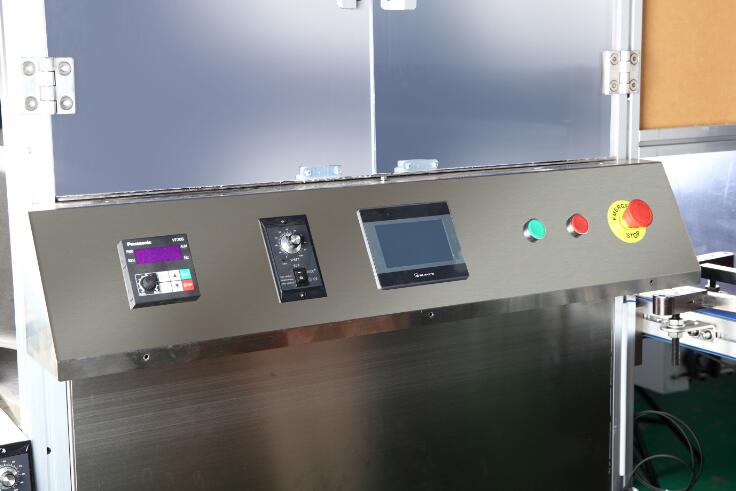

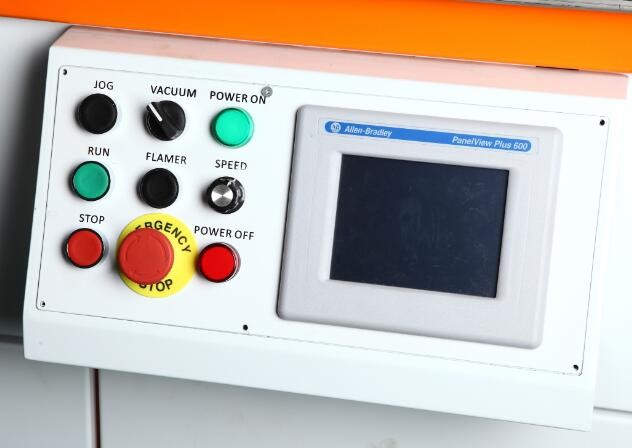

Omron PLC and touch screen controlled
Italy SITI brand main motor

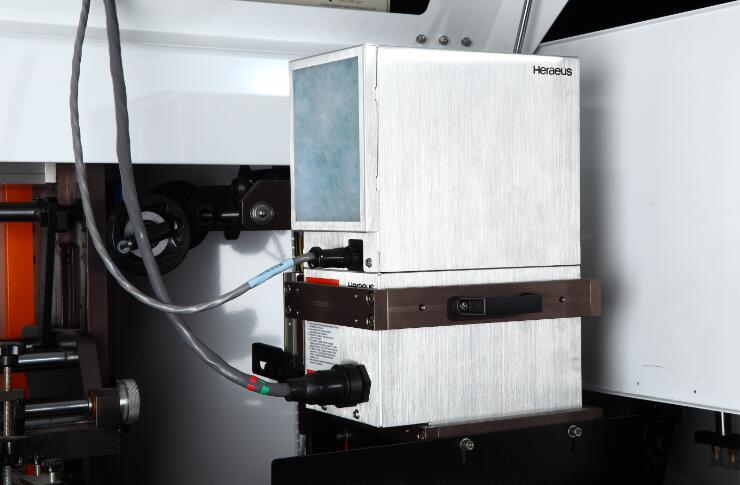

Intelligent UV system saves energy consumption
Integrated anti-static dust blowing and bottle surface flame treating
Features
2 color automatic UV bottle screen printing machine
Fast print speeds up to 4200 bottles per hour
Accurate color to color registration
Prints on round, oval and square bottles
Mechanical driven bottle transport in high stability
Omron PLC and touch screen controlled
Italy SITI brand main motor
Intelligent UV system saves energy consumption
Integrated anti-static dust blowing and bottle surface flame treating
Specifications
| Model NO.: | HY-767-2 |
| Round container size: | Diameter: φ10-100mm, Height: 30-260mm |
| Round container max. print area: | L 260 x W220mm |
| Oval container size: | R: 10-250mm, Height: 30-260mm |
| Oval container max. print area: | L 120 x W220mm |
| Drive: | Mechanical Driven |
| Control system: | OMRON PLC & Touch Screen |
| Max. printing capacity: | 70 pcs/min |
| Registration tolerance: | +/- 0.2 mm |

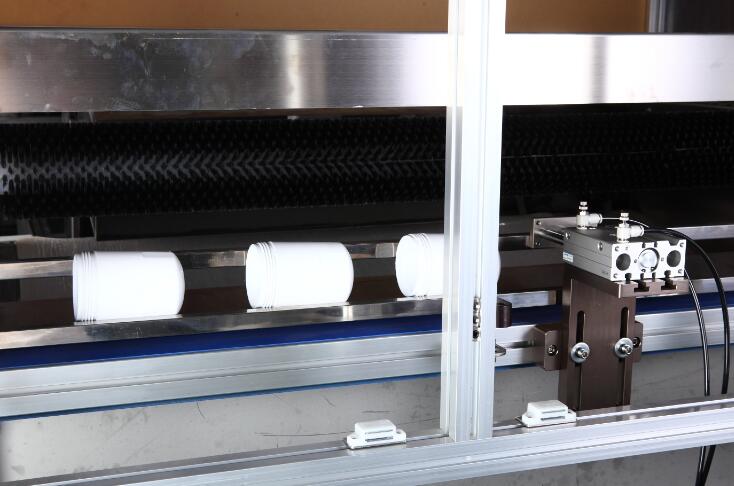

| Infeed conveyor: | 1 unit, length: 2 meters |
| Deionizing device: | 1 unit |
| Flame treating system: | 1 unit, LP gas |
| Motor: | ITALY SITI |
| Print head: | 1 unit |
| UV system: | 1 unit intelligent UV system, 5KW per each |
| Outfeed conveyor: | 1 unit, Length: 2 meters |
| Frequency Converter: | OMRON |
| Pneumatic parts: | FESTO or SMC |
| Electrical: | 380V 3phase 50Hz |
| Air requirement: | 5-7 bar |
| Air consumption: | 85 liter/ minute max. (per color) |
| Power consumption: | 5.4 KW/color x 2 |
| Machine size(LxWxH): | Main machine: (2300x1800x1700mm) x 2 |
| Weight: | 1600 KG x 2 |
