Description
Technical Parameter:

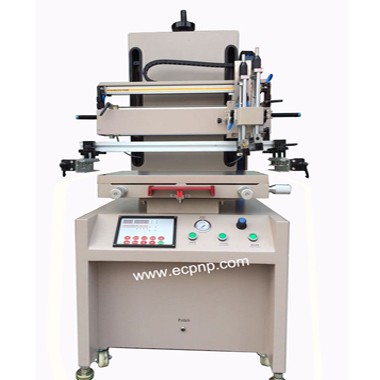

Model: ECP-4060
Max Printing Area: 400mm x 600mm
Vacuum Working Table Size : 500mm x 700mm
Max Screen Size: 600mm x 800mm
Product Max Heightl: ≦120mm
Workbench Horizontal Precision: ±0.05
Overcolor Print Precision: ±0.01
Printing Pressure: 4.0-8.Kgf/C㎡
Operation Air Pressure: 0.4Mpa-0.6Mpa
Source Power: 50W
Rated Voltage: 110 / 220V 50 / 60Hz
Printing Speed: 400-600PCS/Hr
Dimension(L*W*H): 1100*1000*1800mm
Weight: 260KG
Features
1.Printing Transmission adpots Rodless Cylinder drive,hight prcision linear lead rail and synchronous belt drive,movement sensitive,speed equality and can be adjusted.
2.The up and down of machine arm is driven by high quality cylinder ,frequency control,move steady.
3.The printing blate and ink-return blate with a airpressure adjusted device and can rugulate printing thickness.
4.Vac-sobing to fix printing stocks.
5.With a up and down,left and right,front and back vernier device very convinient for register.With a safty device ,safe and reliable.
