Description
Description:
This machine is by Mechanical Driven Automatic UV Screen Printing Machine which is upgraded with the

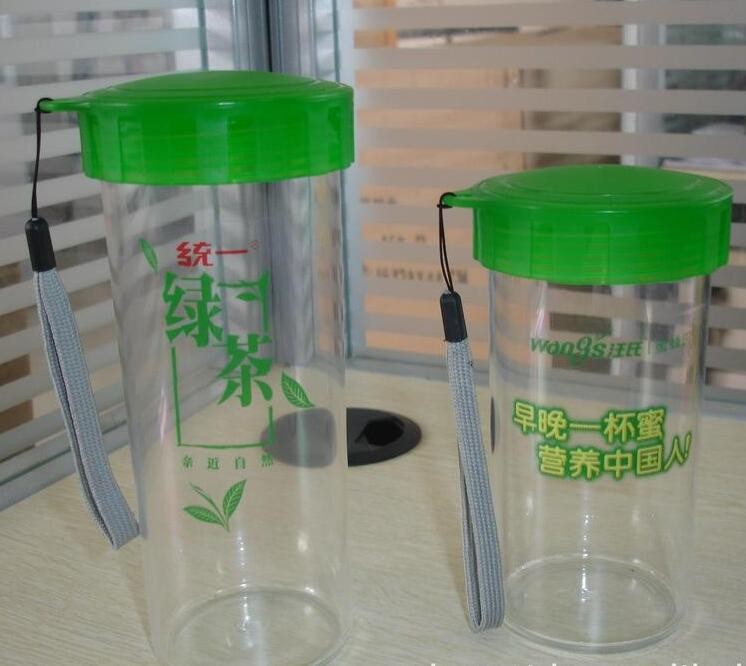

automatic feeding system and automatic stacking system on plastic cups. It is perfectly fitting on those plastic cups, hardening paper cups printing.It is also fitting on all those around, Conical, Oval, and Square Shape bottles by making a separate set of tooling jig.
Specification
1.Printing Speed Round: 3500pcs / hr Oval 4000pcs / hr
2.Printing Length: 150-450mm
3.Printing Height: 50-250mm
4.Compressed Air: 0.6MPa
5.Lp Gas:0.15MPa
6.Power Unit:380V/3P 50Hz 7KW/220-240V,3Phrases,7KW.
7.Machine Dimension:2580×1580×2100mm
8.Packing Size:298*168*187CM
9.Net Weight:1080KG
10.Gross Weight:1280KG
Features
1: Cam-linkage mechanisms driving mode combined with PLC control system for effectively guarantee
working stability, reliability, and efficiency.
2:Reliability: Main components from Rexroth, Schneider, SMC, Mitsubishi international brand. The machines
hardware parts are made by CNC directly from CAD.
3: Machine Frame & structures made by high-intensity aluminum alloy and stainless steel.
4: With PLC control system, touch screen interface. Fast setup & quick tooling change over for customer's easy
operation and adjustment
5: Adopted with No-product- no print system, auto counter, safety alarm device.
6: Optional: Made based on the customer's special requirements. The round & oval bottles commonly used devices,
antistatic dust removing device, extra set flame treatment, UV/IR system, auto scrambler system, offloading conveyor,
offloading robotarm to have bottles stand up on the off conveyor belt and any other customizations due to order.
7: Italy Style Electronic UV Curing System for mostly power rate saving, assuring the UV lamp’s longest life span,
adjustable UV identity from 20%-100%
Description
Single Color Mechanical Driven Automatic UV Screen Printing Machine
latest upgraded mechanical driven automatic UV silk screen printing machine. Compare with the traditional pneumatic
driven automatic UV silk screen printing machine, the latest designed mechanical driven automatic UV silk
screen printing machine is with advantages as below:
1: Much Higher Working Capacity
2: Lower noise and perfect working stability because of the mechanical driven
3: High précised and perfect registering multi-color printing
4: Easy setting up for tooling change between oval, round and flat shape bottles and containers
5: equipped with electronic control UV curing system for adjust the UV density ranges from 0-100%
Our company is continuously upgraded. In order to provide the customers with better, faster and more stable auto-
matic printing machine, our company pays more attention to specialize in the mechanical driven automatic machine
rather than the traditional and backward Pneumatic Automatic Screen Printing Machine.
This machine is by Mechanical Driven Automatic UV Screen Printing Machine which is upgraded with the
automatic feeding system and automatic stacking system on plastic cups. It is perfectly fitting on those plastic cups, hardening paper cups printing.It is also fitting on all those around, Conical, Oval, and Square Shape bottles by making a separate set of tooling jig.
Specification
1.Printing Speed Round: 3500pcs / hr Oval 4000pcs / hr
2.Printing Length: 150-450mm
3.Printing Height: 50-250mm
4.Compressed Air: 0.6MPa
5.Lp Gas:0.15MPa
6.Power Unit:380V/3P 50Hz 7KW/220-240V,3Phrases,7KW.
7.Machine Dimension:2580×1580×2100mm
8.Packing Size:298*168*187CM
9.Net Weight:1080KG
10.Gross Weight:1280KG
Features
1: Cam-linkage mechanisms driving mode combined with PLC control system for effectively guarantee
working stability, reliability, and efficiency.
2:Reliability: Main components from Rexroth, Schneider, SMC, Mitsubishi international brand. The machines
hardware parts are made by CNC directly from CAD.
3: Machine Frame & structures made by high-intensity aluminum alloy and stainless steel.
4: With PLC control system, touch screen interface. Fast setup & quick tooling change over for customer's easy
operation and adjustment
5: Adopted with No-product- no print system, auto counter, safety alarm device.
6: Optional: Made based on the customer's special requirements. The round & oval bottles commonly used devices,
antistatic dust removing device, extra set flame treatment, UV/IR system, auto scrambler system, offloading conveyor,
offloading robotarm to have bottles stand up on the off conveyor belt and any other customizations due to order.
7: Italy Style Electronic UV Curing System for mostly power rate saving, assuring the UV lamp’s longest life span,
adjustable UV identity from 20%-100%
Description
Single Color Mechanical Driven Automatic UV Screen Printing Machine
latest upgraded mechanical driven automatic UV silk screen printing machine. Compare with the traditional pneumatic
driven automatic UV silk screen printing machine, the latest designed mechanical driven automatic UV silk
screen printing machine is with advantages as below:
1: Much Higher Working Capacity
2: Lower noise and perfect working stability because of the mechanical driven
3: High précised and perfect registering multi-color printing
4: Easy setting up for tooling change between oval, round and flat shape bottles and containers
5: equipped with electronic control UV curing system for adjust the UV density ranges from 0-100%
Our company is continuously upgraded. In order to provide the customers with better, faster and more stable auto-
matic printing machine, our company pays more attention to specialize in the mechanical driven automatic machine
rather than the traditional and backward Pneumatic Automatic Screen Printing Machine.
