Description
Advantage
Vertical double guide rail
Transversal double guide rail
New style intelligent operation panel

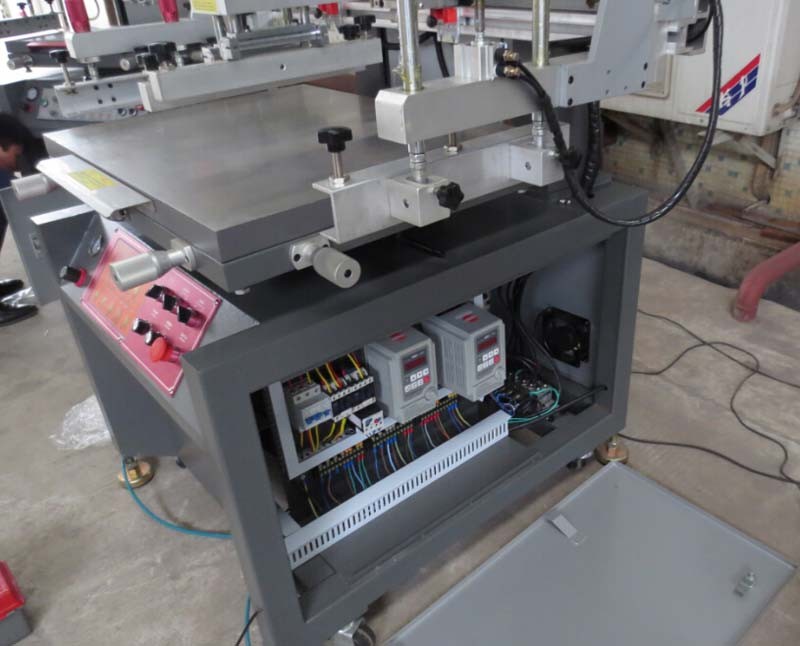

Upgrade frequency changer
Cool adjustment with scale
Features
1.Printing Transmission adpots moter drive,hight prcision linear lead rail and synchronous belt drive,movement sensitive,speed equality and can be adjusted.
2.The up and down of machine arm is driven by moter,frequency control,move steady.
3.The printing blate and ink-return blate with a airpressure adjusted device and can rugulate printing thickness.
4.Vac-sobing to fix printing stocks.
5.With a up and down,left and right,front and back vernier device very convinient for register.With a safty device ,safe and reliable.
Workbench area: 500mm*700mm
Max Printing Area: 400mm*600mm
Max Screen Size: 600mm*800mm
Applicative product height printing height : 0-50mm
Workbench Horizontal Precision: ±0.05
Overcolor Print Precision: ±0.01
Printing Pressure: 4.0-8.Kgf/C㎡
Operation Air Pressure: 0.3Mpa-0.5Mpa
Source Power: 2.3KW
Rated Voltage: 220V or 380V (optional)
Printing Speed: 400-600PCS/Hr
Dimension(L*W*H): 1250*1100*1850mm
Weight: 420KG
