  • Flat Screen Printer with Servo Motor

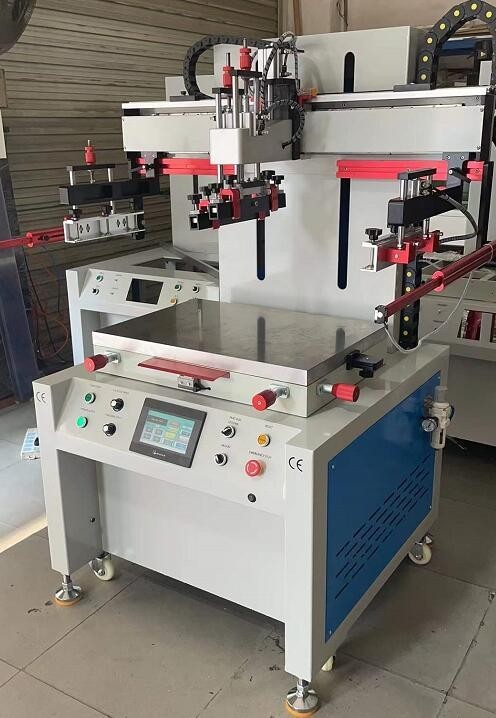

Flat Screen Printer with Servo Motor

  • Model:EC-5070A/B
  • Views:1197
  • Flat Screen Printer with Servo Motor
    Inquiry Send Email

    Description

    Application: High Precision PCB , LCD LENS , Conductive film circuit , PMMA ect , all high precision printing products.
    Technical Parameter:
    EC-5070A/B
    Workbench area: 600mm*800mm
    Max Printing Area: 500mm*700mm
    Max Screen Size: 700mm*900mm
    Product Max Height: ≦250mm
    Workbench Horizontal Precision: ±0.05
    Overcolor Print Precision: ±0.01
    Printing Pressure: 4.0-6.0Kgf/C㎡
    Operation Air Pressure:0.3Mpa-0.5Mpa
    Source Power: 1.5kw
    Rated Voltage: 380V
    Printing Speed: 900PCS/Hr
    Dimension(L*W*H): 1200*1000*1570mm
    Weight: 420KG

    Feature:
    1.Printing Transmission ( Printing head left and right moving) adpots Panasonic brand servo motor drive,high precision linear lead rail and synchronous belt drive, PLC control and touch screen setting  , speed equality and can be adjusted.
    2. Printing head and screen frame up and down lifting is driven by Panasonic brand servo motor (Optional) or stepping motor. PLC control and touch screen setting , or frequency control,move steady.
    3.The printing blate and ink-return blate with a airpressure adjusted device and can rugulate printing thickness.
    4. Vacuum table strong suck power to fix printing.
    5.With a up and down,left and right,front and back vernier device very convinient for register.With a safty device ,safe and reliable.
    6.ECU centralized control by the microcomputer,easy to operation,flexible and convenient for maintenance.
