Description

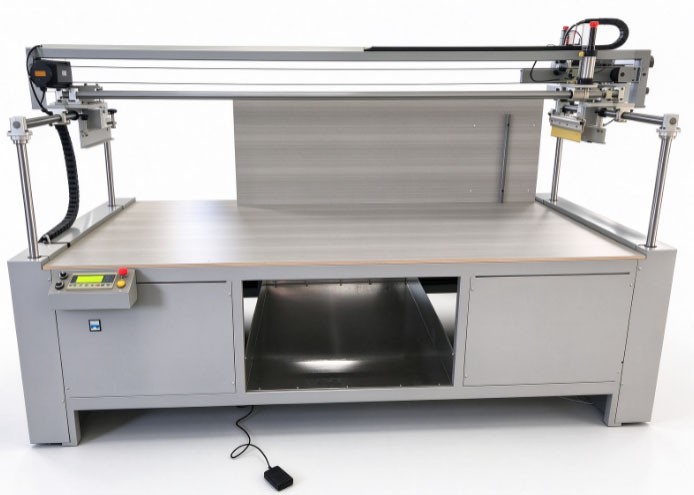

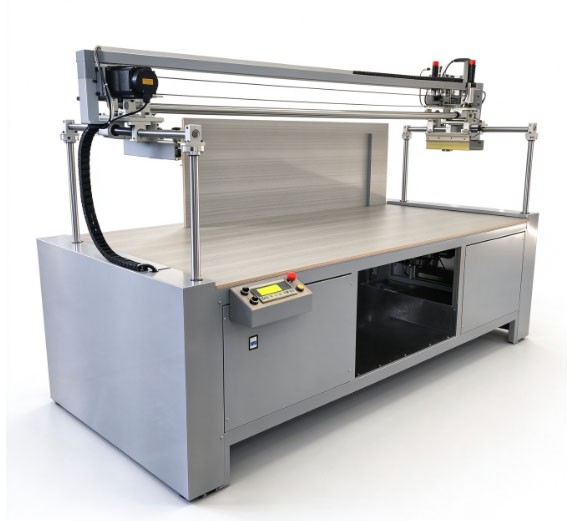

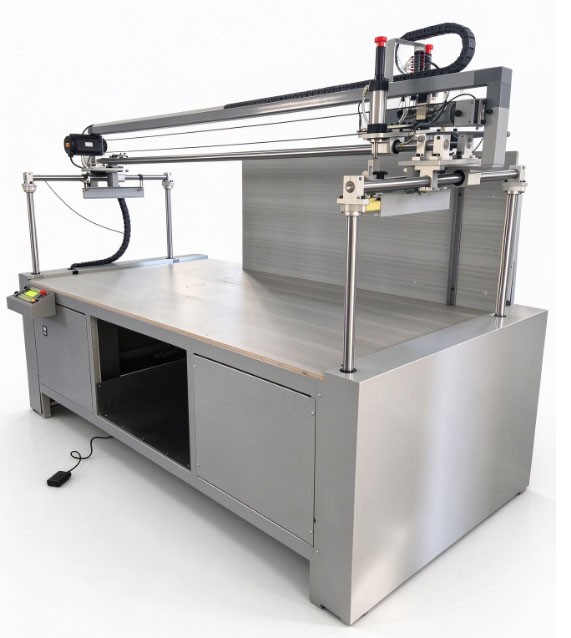

The back plate and worktable of this screen printer are made of plywood, which greatly reduces the machine cost.
The printing height of the screen frame of this machine automatically decreases as the quantity of stacked cartons reduces.
Parameter
Printing table size: 1220 × 2440mm
Max printing area: 1000 × 2000mm
Max printing speed: 1000 pcs/h
Loading height: 0–450mm
Machine dimension (L×W×H): 2820 × 1220 × 1500mm
Power supply: 220V, 800W
Air pressure: 0.2 MPa
Weight: approx. 350 KG
