Description
Introduction

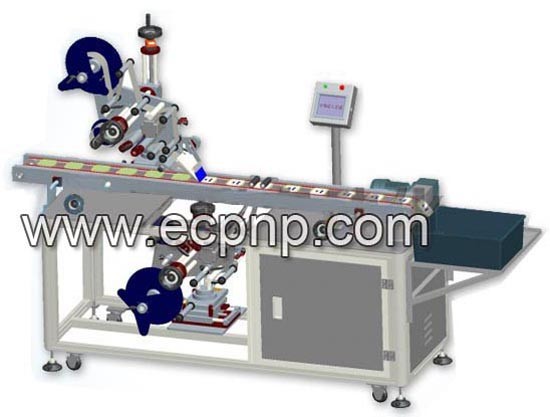

EC-TNBL top & bottom automatic labeling machine is the most suitable product for high accuracy top and bottom labeling application. High quality anodized aluminum alloy enable the labeler with outstanding stability and performance which is your best labeling companion.
Firm And Exact Data Transfer
Control parts of labeler are link by advance high speed communication interface to ensure the data transfer is firm and accurate. In the meanwhile enable the control diagram more straight forward and steady which is guarantee for the machine's continuous output.
Convenient Adjustment And Steady Production Equipment
EC-TNBL top & bottom automatic labeling machine is equipped with convenient adjustment ability for different product specification. Including label position and parameters required for the production. Which make sure your production output and most ideal product appearance.
Features
Frame Assembly
1.Main labeler structure is made from durable S304 stainless steel and anodized harden aluminum. Maintenance is easy and efficient.
Control Interface
2.Control system of labeler has large touch screen panel, certified by CE, UL regulation for efficient and effective monitoring for the labeling result.
3.Control box and external connection of labeler pass CE, UL safety regulation with IP65 level to ensure control system life time and stability.
Applicator Assmbly
4.Labeling control by Panasonic micro process controller PLC, labeling performance is fast and steady.
5.In order to make sure labeling accuracy at high speed and with high efficiency along with low consuming, label dispensing is driven by stepper motor(For high speed demand servo motor can also be selected).
6.Famous Branded fiber optic and infrared sensor for precise detection and signal triggering without interference.
7.Standard label applicator width both 180mm and 250ml optional. Applicator is ready for future hot foil printer assembly attachment.
8.Labeler equip with adjustable hand wheel assembly. Efficient and effective for label positioning for maximum production output.
Labeler Component Advantages
9.Maintenance is easy and efficient.
10.Delicate VFD controller ensure speed stability and +/-0.5% inaccuracy rate.
11.Guide rail portion adapt high quality aluminum covered with hard-wearing industrial plastic. It will guide product for most accurate labeling performance and protect product surface from scratch. To ensure most attractive product appearance for the customer.
12.Labeler base adapt Stainless Steel structure to make sure anti-rust even touching the floor. This design ensure the machine and production space maintain hygienic environment which is normally neglected by other manufacturer.
13.Equip with movable wheel convenient for different line shifting. This supportive and mobility strength increase the value of your investment.
Specifications
Supply voltage: 220/110 VAC 50/60Hz 1Phase
Power consumption: 880 VA
Dispensing Speed: 40m/min max.
Conveyor Speed: 40m/min max.
Applicator Height: 170mm / 230mm
Label size: 170mm x 300mm max.
Conveyor Width: 160mm
Spool Diameter: 76mm
Dimension: 2235mm (L) x 800mm(W) x 1380mm(H)
