360 Degree Screen Printing Machine for Square Bottle Oval Bottle

  • Model:EC-400V
  • Views:815
  • Square Bottle Screen Printing
  • Screen Printing Machine  , Round Screen Printer
    Inquiry Send Email

    Description

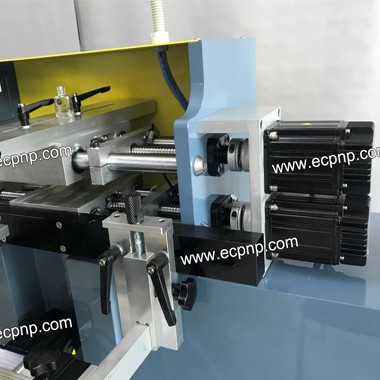

    This machine is full CNC screen printing machine ,it has four set servo systems .

    Servo motor A is for screen printing blade left and right printing.
    Servo motor B is for screen frame  left and right moving.
    Servo motor C is used to control fixture rotation .
    Servo motor D is used to control working table up and down .

    It's designed for 360 degree screen printing square bottles and oval bottles specially .
    The full cycle printing for the whole square bottle and oval bottle.

    It can print round bottles and rhombus bottles too .


    Parameter
    Round  bottle diameter:Φ15-80mm ,  height: 20-150mm
    Square bottle perimeter <300mm,   height: 20-150mm
    Oval   bottle perimeter <300mm,   height: 20-150mm

    Air pressure:  3-5 bar
    Power: 110V/220V 50/60Hz , 3kw
    Machine dimension: 1000mm*800mm*1200mm
    Machine weight: 300kg
