Description
Introduction:

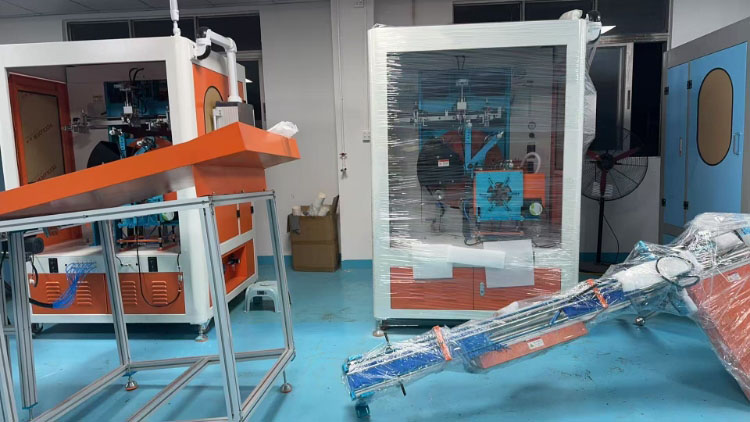

Automatic vertical turntable milk tea cup screen printing machine is a newtype of curved surface printing machine, mainly applicable to milk tea cups andcurved surface product series, choose to add material bin to prepare materialsthe conveyor line stacking function on the material, automatic blowing type ofmaterial, and has a point counting function and the finished product collectionbin; easy to use, simple structure, easy to operate, fast speed, save time andeffort and cost; and can be configured according to the needs of the choice ofsingle-color or overlay color printing, to Meet the different needs of products
Application :

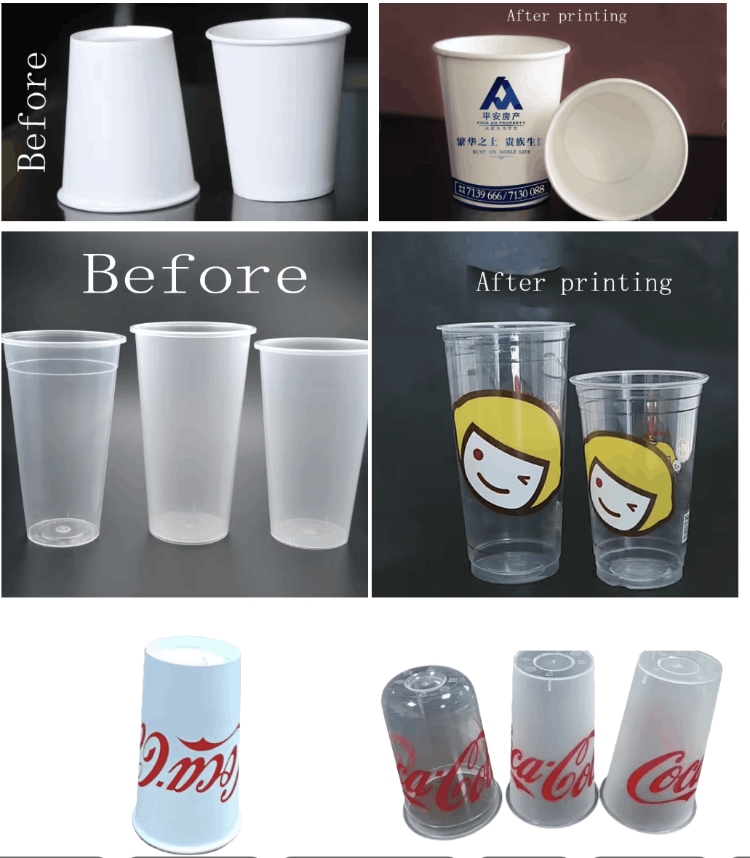

The equipment is mainly applied to the graphic printingon the surface of rubber/plastic/glass/metal articles for daily use, dailychemicals, color cosmetics, food, wine, medical treatment and so on.
Features :

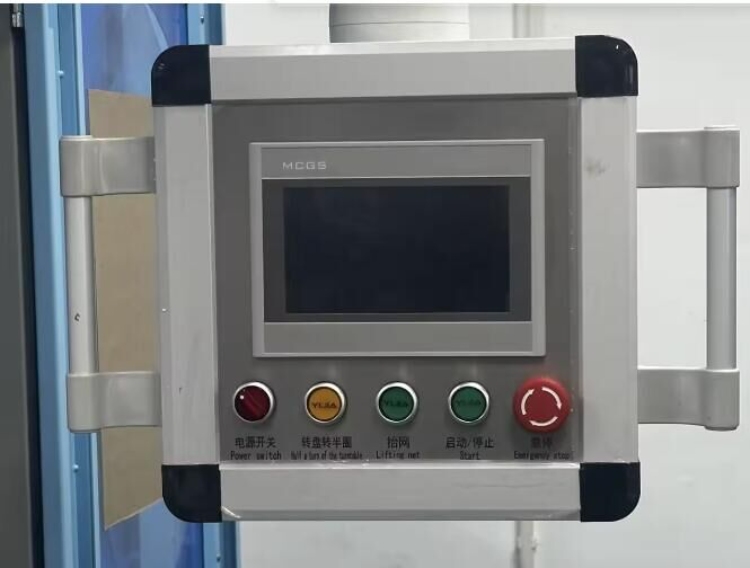

1, Touch screen + PLC compiled program control action.
2, Fully automatic design, visua automation mode operation.

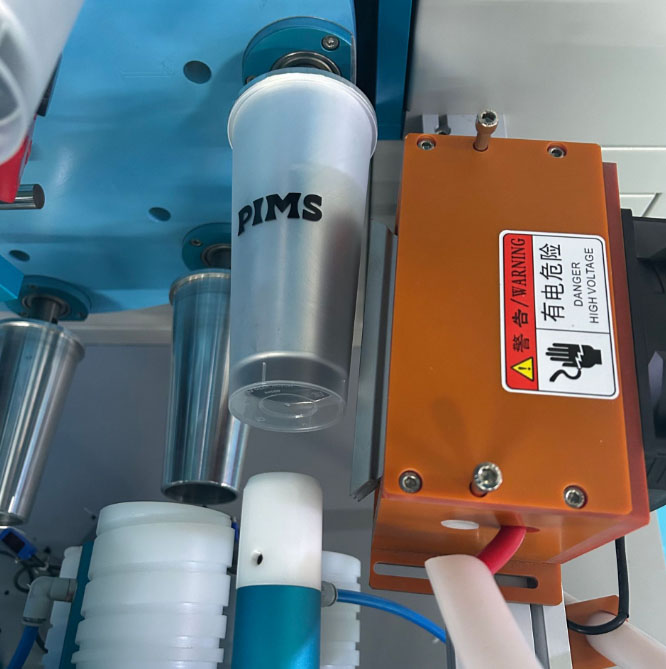

3,Pre-printing corona machine surface treatment method.

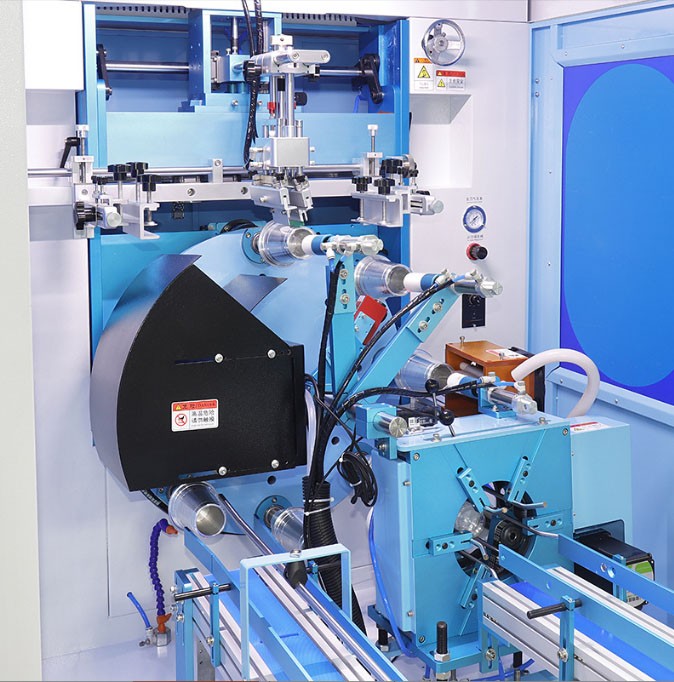

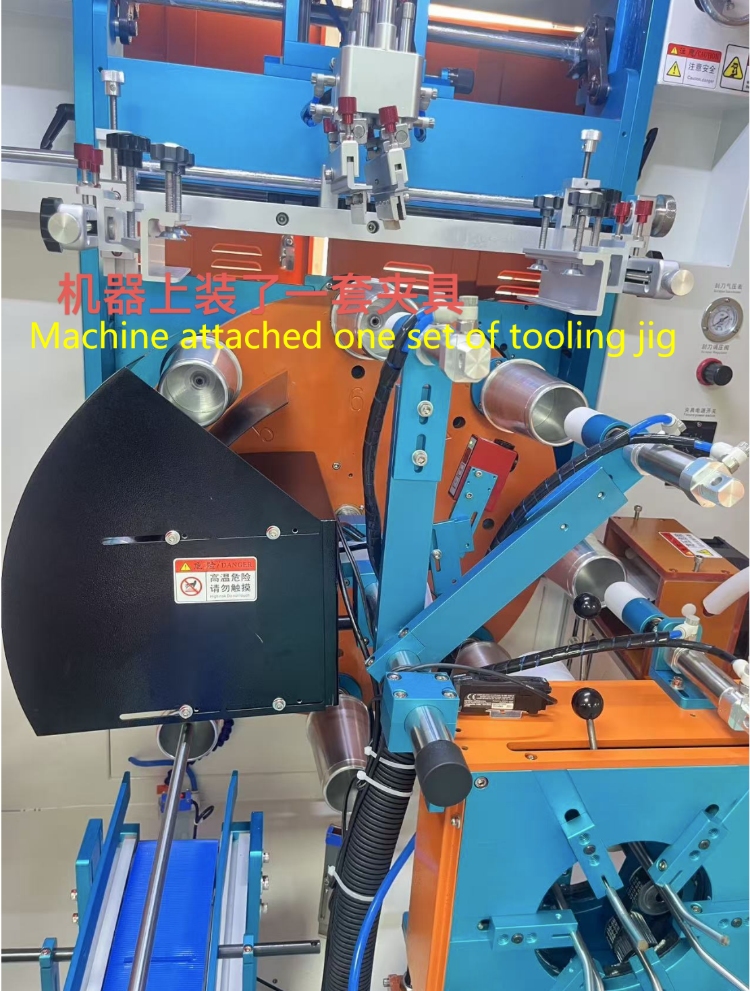

4, Diameter 600 turntable, 8 stations rotary printing
5, induction photoelectric sensor accurate positioning
6, Automatic second drying device system processing after printing

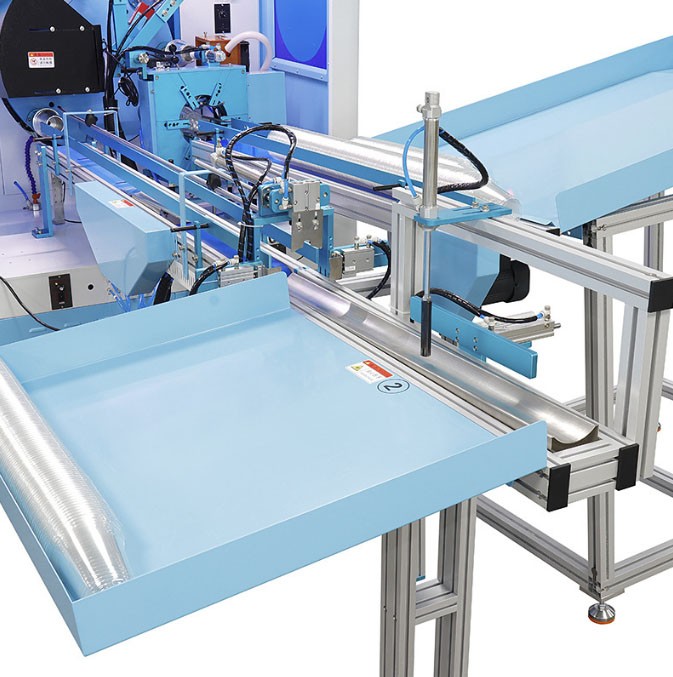

7, equipped with upper and lower material storage bin, lower material automaticstacking and with point function.
Auto Registration Max.printing speed : 2500-4500pcs/Hr
2) Power: 220V 50-60MHZ | 7KW
3) Air pressure:5-7bar
4) Loading mode:Automatic
5) Unloading mode:Automatic
6) Transeversa stroke:350mm
7) Max printing diameter:￠110mm
8) Max length of products:200mm
9) Before printing: With Corona treatment

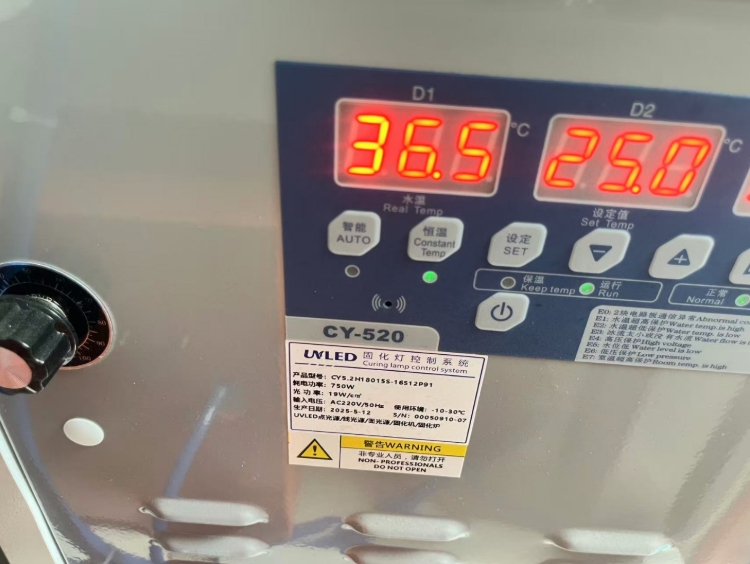

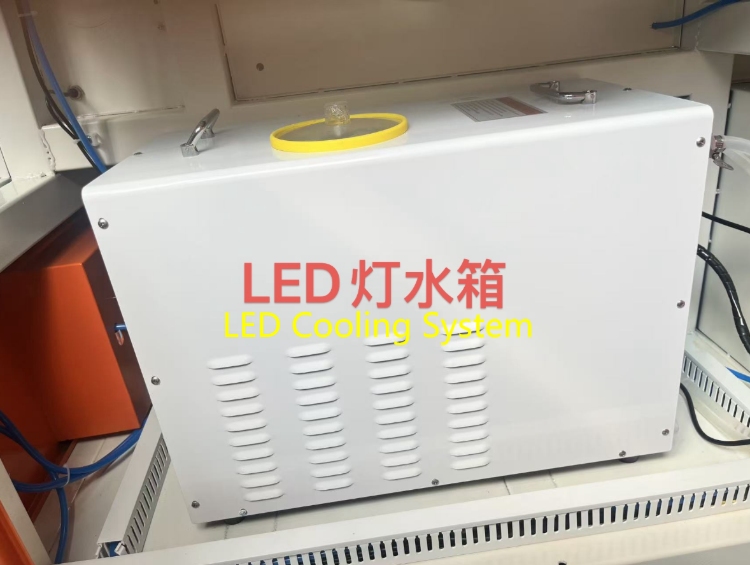

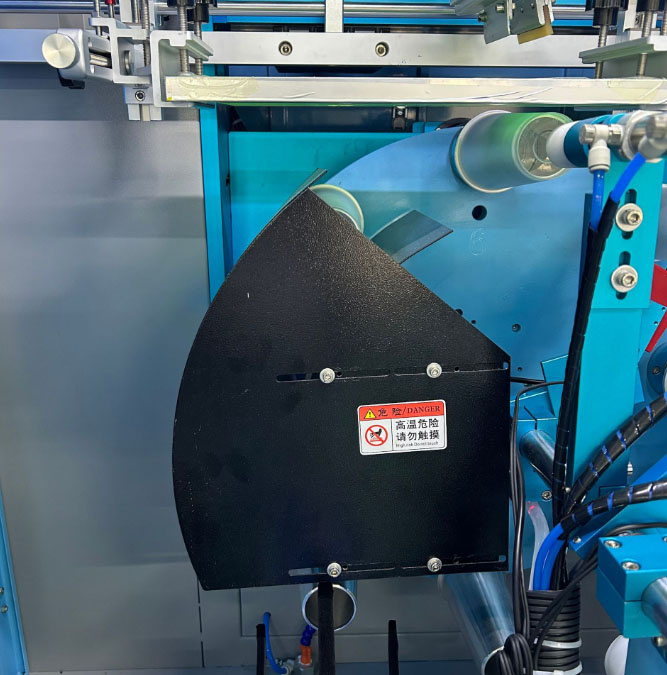

10) After printing: With LED UV curing
Automatic vertical turntable milk tea cup screen printing machine is a newtype of curved surface printing machine, mainly applicable to milk tea cups andcurved surface product series, choose to add material bin to prepare materialsthe conveyor line stacking function on the material, automatic blowing type ofmaterial, and has a point counting function and the finished product collectionbin; easy to use, simple structure, easy to operate, fast speed, save time andeffort and cost; and can be configured according to the needs of the choice ofsingle-color or overlay color printing, to Meet the different needs of products
Application :
The equipment is mainly applied to the graphic printingon the surface of rubber/plastic/glass/metal articles for daily use, dailychemicals, color cosmetics, food, wine, medical treatment and so on.
Features :
1, Touch screen + PLC compiled program control action.
2, Fully automatic design, visua automation mode operation.
3,Pre-printing corona machine surface treatment method.
4, Diameter 600 turntable, 8 stations rotary printing
5, induction photoelectric sensor accurate positioning
6, Automatic second drying device system processing after printing
7, equipped with upper and lower material storage bin, lower material automaticstacking and with point function.
8, The whole machine is equipped with a full set of Yarde cylinder components.
Parameter
1) Single Color Max.printing speed : 3500-6000pcs/HrAuto Registration Max.printing speed : 2500-4500pcs/Hr
2) Power: 220V 50-60MHZ | 7KW
3) Air pressure:5-7bar
4) Loading mode:Automatic
5) Unloading mode:Automatic
6) Transeversa stroke:350mm
7) Max printing diameter:￠110mm
8) Max length of products:200mm
9) Before printing: With Corona treatment
10) After printing: With LED UV curing
