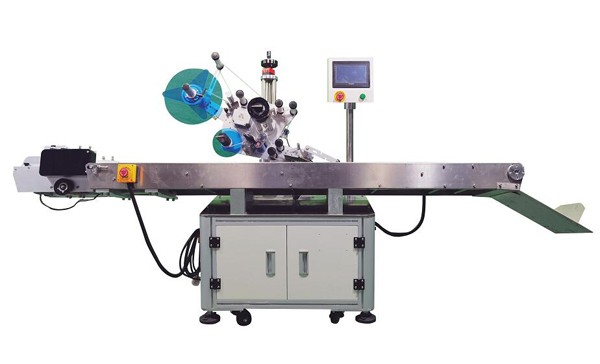

Automatic Top Labeling Machine with Auto Feeding

Description

Application
This machine is our HCT-11300 Automatic Flat Labeling Machine + Auto feeder.
It can feed and stick bags , paper ,cards and unfold cartons .
Feature
1. adopt mature PLC control system technology, make the whole machine stable and high-speed
2. use touch screen control system, make operation simple, practical and efficient
3. upgraded butterfly labeling station design, can be applied for conical bottle labeling
4. screw adjust the suppression mechanism, high accuracy
5. synchronization chain mechanism, to ensure smooth and precise calibration
6. transparent sticker labeling without foam,adhesive sticker labeling without wrinkle
7. widely used and mutil-function with high flexibility
8.Spurts the code system or bar code printer is for optional
Specification
1.Label width: 20-150mm
2.Label length: 6-150mm
3.Products Diameter:
Length: 40mm-280mm
Width: 40mm-200mm
Height: 0.2mm-2mm
4.Max Outside diameter of label roll: φ280mm
5.Inside diameter of label roll: φ76mm
6.Max Labeling speed: 200pcs /min
7.Accuracy of labeling:±0.5-1mm
8.Power: 220V/110V 50/60Hz    1200W
9.Air Pressure: 4- 6 bar  or  0.4 -0.6 Mpa
10.Machine Net Weihgt : 180KG

11.Machine Dimension: 2200mm x 700mm x 1450 mm
